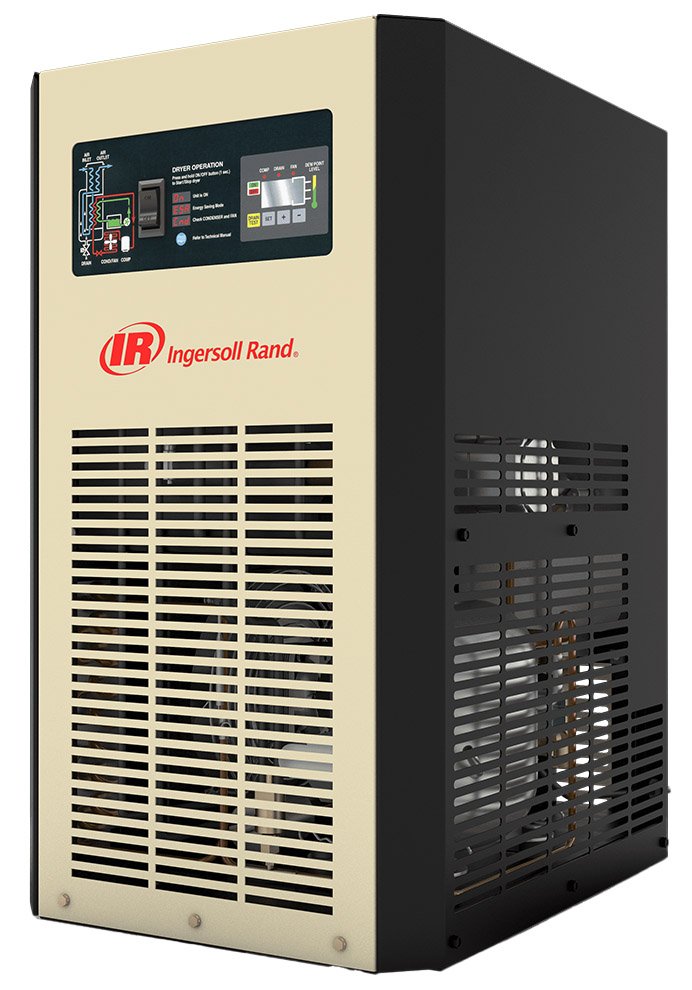

Ingersoll Rand D-EC Series High-Efficiency Cycling Refrigerated Air Dryer
10 to 250 SCFM, Air-cooled, R-513a refrigerant, Pre and Post Filtration included, ISO Class 4 quality air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand D-EC Series High-Efficiency Cycling Refrigerated Air Dryer features a refrigeration system that automatically deactivates during periods of low load and features a patented heat exchanger and thermal mass circuit. The D-EC Series is equipped with R-513a refrigerant, boasting a zero Ozone Depletion Potential (ODP) as well as <700 GWP to help increase cost savings while playing a crucial role in reducing the emission of harmful greenhouse gases.
Overview and Features
Features
- 10 to 250 SCFM
- ISO Class 4 quality air with 38°F dew point
- Microprocessor control with digital display
- 115/1/60, 230/1/60, 230/3/60 or 460/3/60 voltage (depending on SCFM)
- R-513a refrigerant
- Prefiler and post filters included (shipped loose)
- NEMA 1 protection class standard
- NEMA 4 available on 200 and 250 SCFM models
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 SCFM, 18 SCFM, 24 SCFM, 35 SCFM, 50 SCFM, 75 SCFM, 100 SCFM, 125 SCFM, 150 SCFM, 200 SCFM, 250 SCFM |
|---|---|
| Voltage | 115/1/60, 230/1/60, 230/3/60, 460/3/60 |
| Connection Size / Type | 1/2" FNPT, 3/4" FNPT, 1" FNPT, 1-1/2" FNPT |
| Package | Electric Drain Valve, NEMA 1, Ship Loose G Prefilter and H Postfilter, Electric No Loss Drain, NEMA 1, Ship Loose G Prefilter and H Postfilter, Electric Drain Valve, NEMA 4, Ship Loose G Prefilter and H Postfilter, Electric No Loss Drain, NEMA 4, Ship Loose G Prefilter and H Postfilter |
