Hertz Kompressoren

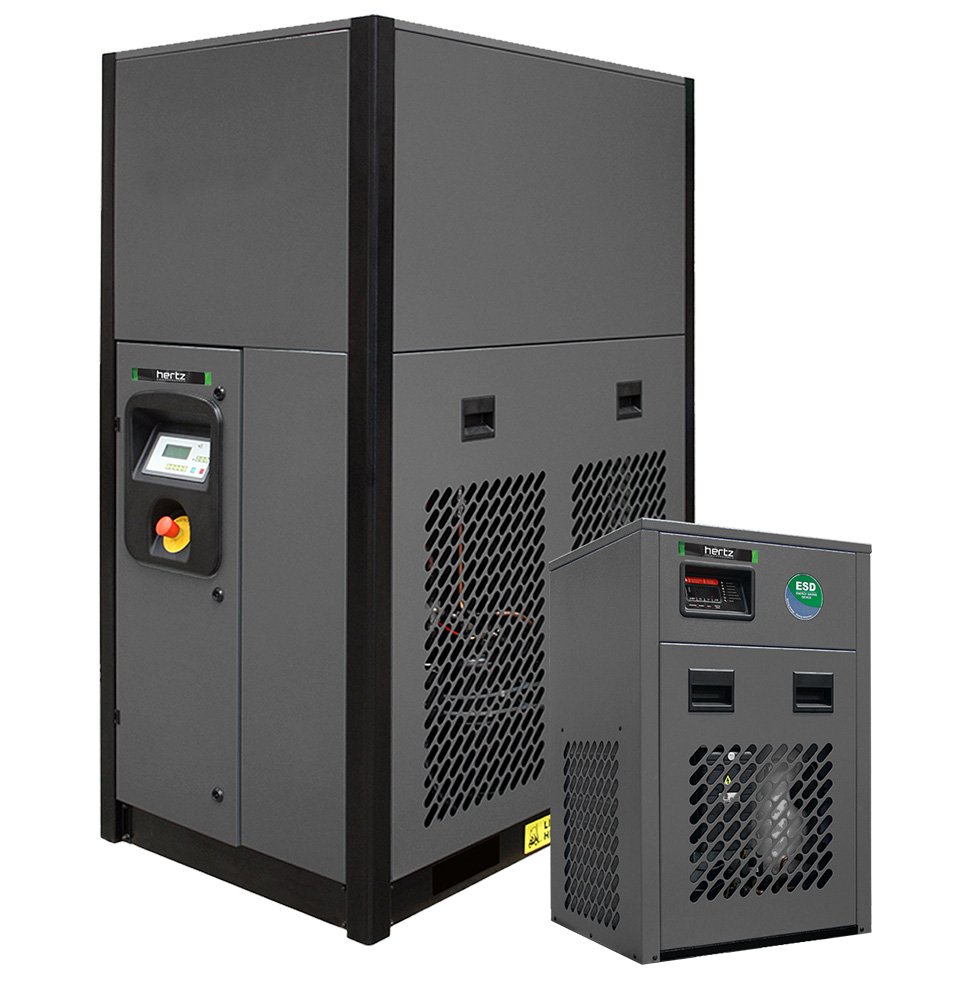

Hertz HRD Series Refrigerated Digital Cycling Dryer
Refrigerated compressed air dryers with a maximum capacity of up to 5500 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HRD Series is a line of refrigerated compressed air dryers, with capacity options ranging from 12 to 5500 CFM. The dryers operate by cooling the compressed air passing through them and keep that air dry down to the dew point of +37.4°F (3°C). Its design allows for very low pressure loss, as well as featuring separate electrical and cooling sections. These dryers utilize R-134a refrigerant. This line of refrigerated dryers are ideal for tropical climates.
Overview and Features
Features
- Low pressure loss
- R-134a refrigerant
- Separate electrical and cooling sections
- Capacity options up to 5500 CFM
- Operates at 140°F inlet temperature
- Digital controller and compact design
- 1/2″ NPT to 8″ ANSI flange connection options
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 CFM, 15 CFM, 25 CFM, 30 CFM, 40 CFM, 60 CFM, 80 CFM, 100 CFM, 125 CFM, 150 CFM, 200 CFM, 250 CFM, 350 CFM, 500 CFM, 600 CFM, 750 CFM, 1000 CFM, 1200 CFM, 1500 CFM, 1750 CFM, 2250 CFM, 2600 CFM, 3000 CFM, 3500 CFM, 4000 CFM, 4500 CFM, 5500 CFM |
|---|---|
| Dryer Type | Reciprocating, Scroll |
| Connection Size | 1/2in NPT, 3/4in NPT, 1 1/2in NPT, 2in NPT, 3in NPT, 4in ANSI flange, 6in ANSI flange, 8in ANSI flange |
| Voltage | 115/1/60, 230/1/60, 230/3/60, 460/3/60 |
