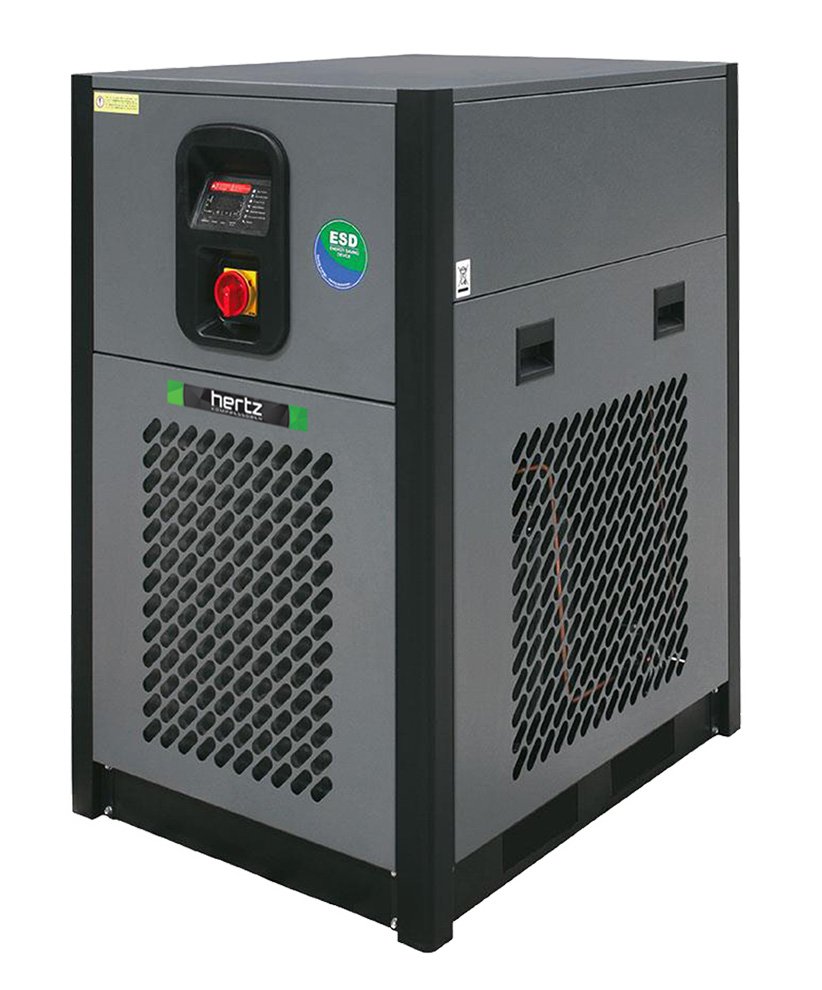

Hertz HRD HPN Series High Pressure Refrigerated Air Dryer
Compressed air dryer designed for high pressure applications up to 650 PSI and a capacity of 1700 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HRD HPN Series is a line of high pressure, refrigerated air dryers designed for applications that involve up to 650 PSI. It operates at a maximum capacity of 1700 CFM, depending on model selection. Additionally, the dryers operate on R134a refrigerant for CFM options 25 to 1300, and R404a for 1400 to 1700 CFM. The dryers offer a compact, smaller design with a 3-in-1 heat exchanger, while also meeting capacity and power requirements. The dryers feature a stainless steel, brazed, plated heat exchanger and offer corrosion resistance. They operate with low pressure difference and are safety tested against leakages.
Overview and Features
Features
- Capacity options: 25 to 1700 CFM
- Maximum pressure: 650 PSI
- R134a or R404a refrigerant
- 3-in-1 heat exchanger
- Low pressure difference
- Safety tested against leakages
- Stainless steel, brazed, plated heat exchanger
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Dryer Options | Reciprocating, Scroll |
|---|---|
| Connection Options | 3/4in NPT, 1 1/4in NPT, 2in NPT, G 2in, G 2 1/2in |
| Capacity Options | 25 CFM, 40 CFM, 70 CFM, 100 CFM, 140 CFM, 190 CFM, 235 CFM, 270 CFM, 350 CFM, 425 CFM, 470 CFM, 550 CFM, 700 CFM, 750 CFM, 850 CFM, 1000 CFM, 1200 CFM, 1300 CFM, 1400 CFM, 1500 CFM, 1700 CFM |
| Voltage Options | 115/1/60, 230/1/60, 460/3/60 |
