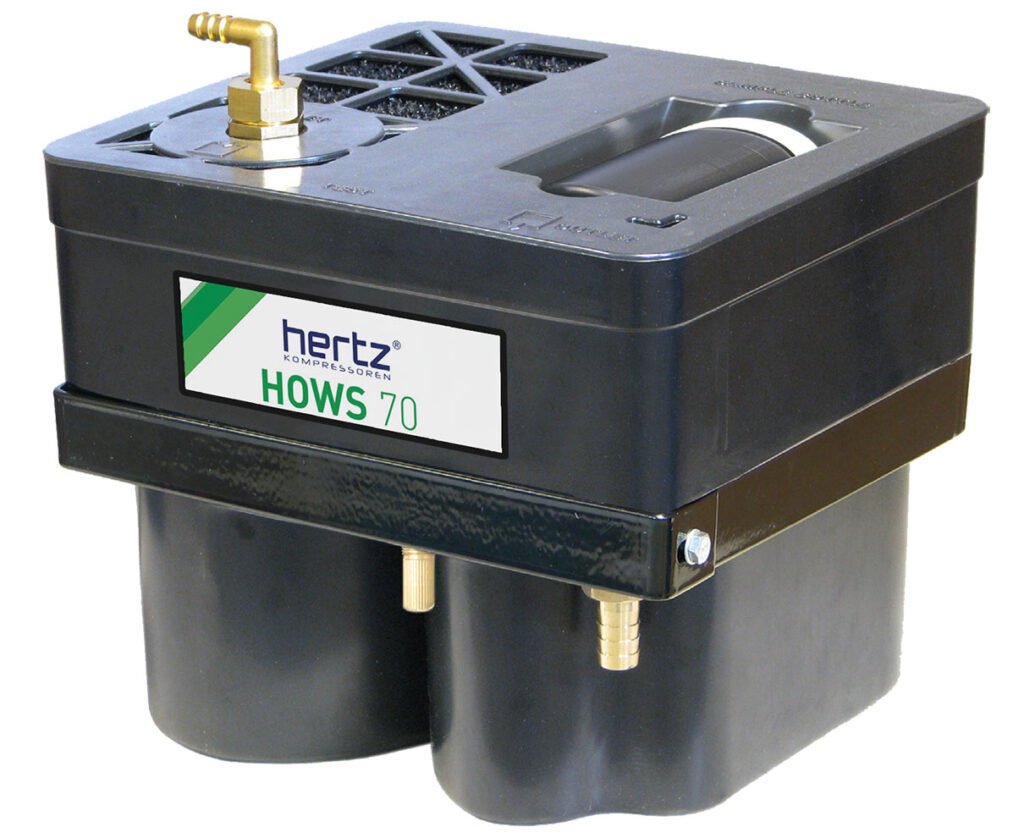

Hertz HOWS Series Oil/Water Separator
Uses three stages of treatment to separate condensate from air systems up to 2500 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HOWS Series is a line of oil/water separators that filters out oil and condensate through various filtration elements. The oil adsorbing elements combine various types of adsorption technologies to achieve less than 10ppm oil residue at the output stage. The separators utilize three stages of treatment, two specially treated polypropylene elements, and a carbon polisher to separate condensate from compressed air systems up to 2500 CFM, regardless of the type of lubricant or drains used.
Overview and Features
Features
- Maximum capacity: 2500 CFM
- Target output value: <10ppm
- High performance filtration materials
- User friendly installation and maintenance procedures
- Brass hose connections
- Two specially treated polypropylene elements
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Maximum Compressor Capacity | 70 CFM, 130 CFM, 175 CFM, 350 CFM, 750 CFM, 1250 CFM, 2500 CFM |
|---|
