Hertz Kompressoren

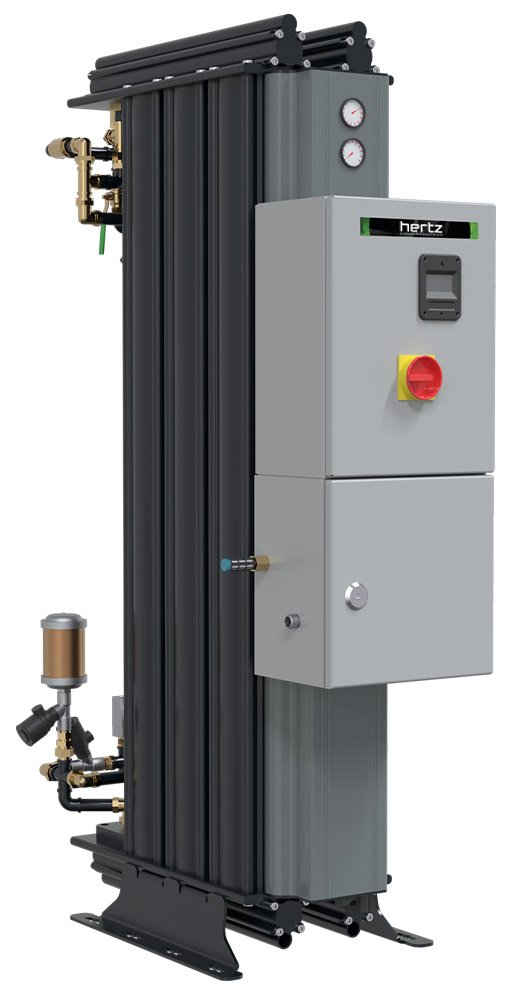

Hertz HNG MOD Modular Nitrogen Generator
Carbon molecular sieve modular nitrogen generator with purity available up to ~99.999%
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HNG MOD Modular Nitrogen Generator is a state-of-the-art solution designed to deliver high-purity nitrogen with efficiency and reliability. Customizable nitrogen purity levels ranging from 95% to 99.999% means this unit is tailored to meet specific application needs. Engineered with a compact and fully automated design, this system eliminates the need for traditional gas manifolds, offering a streamlined and space-saving alternative for nitrogen supply.
AThe HNG MOD is powered by a mini PLC controller, enabling intelligent, centralized control over all system operations for seamless performance and ease of use. The generator features a newly designed silencer that significantly reduces noise levels during both pressurization and purge cycles, making it ideal for noise-sensitive environments.
Overview and Features
Features
- Compact design, full automated operations
- Nitrogen Purity 95% to ~99.999% is available
- Standard equipment:
- Mini PLC controller
- Silencer
- Manometers
- Proportional Valve
- Pressure Transmitter
- ECO Mod
- T Filter
- Piston Valves
- Valve Control Regulator
- Optional equipment:
- Flowmeter Kit
- Oxygen Analyzer Kit
- HMI Color Touch Screen PLC
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Nitrogen Capacity (95 to 99.999% Nitrogen Purity) | 2.5 to 0.2 CFM, 4.1 to 0.4 CFM, 7.6 to 0.8 CFM, 12.6 to 1.3 CFM, 21.7 to 2.2 CFM, 29 to 2.9 CFM, 35.5 to 3.6 CFM, 56.5 to 5.8 CFM, 74.8 to 7.6 CFM, 101.1 to 10.3 CFM, 115.8 to 11.8 CFM, 128.6 to 13.1 CFM, 168.3 to 17.1 CFM |
|---|---|
| Options | Touch-screen HMI, Oxygen Sensor, Flow-meter |
