Hertz Kompressoren

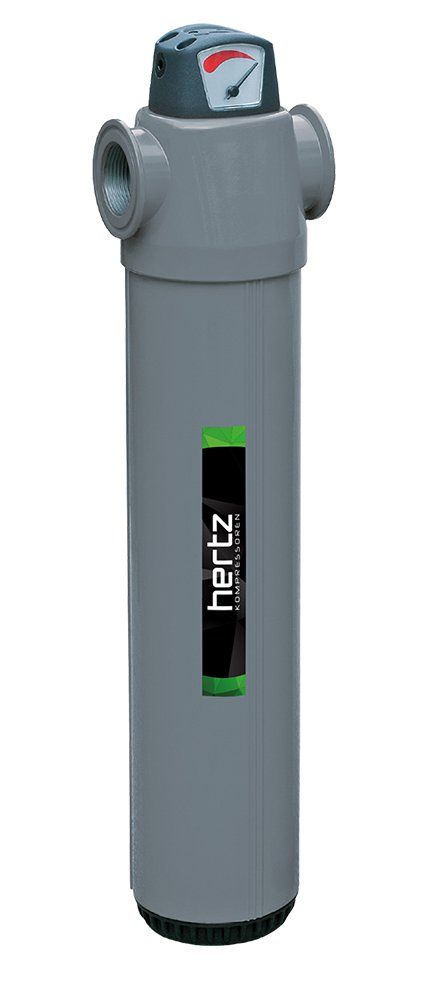

Hertz HGO Compressed Airline Filter
Coalescing line filters with a maximum capacity of 1600 CFM and maximum pressure of 290 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HGO Series is a line of compressed, coalescing air filters with capacity options up to 1600 CFM and a maximum pressure of 290 PSI. They prevent unwanted substances such as dust particles and oil particles in the compressed air coming from the compressor from damaging equipment, pipes, and the quality of the end product. They are designed to be convenient for the end user and are durable for many applications. These air filers are high protected and require low maintenance. They have a low pressure drop with a high efficiency drainage layer. Additionally, they come in connection options from 1/4in to 3in NPT.
Overview and Features
Features
- High protected filter
- Low pressure drop
- High efficiency drainage layer
- Up to 1600 CFM capacity
- Connection options between 1/4in to 3in NPT
- Durable element structure
- 290 PSI maximum pressure
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection Options | 1/4in NPT, 3/8in NPT, 1/2in NPT, 3/4in NPT, 1in NPT, 1 1/4in NPT, 1 1/2in NPT, 2in NPT, 2 1/2in NPT, 3in NPT |
|---|---|
| Capacity Options | 15 CFM, 30 CFM, 60 CFM, 90 CFM, 120 CFM, 150 CFM, 175 CFM, 300 CFM, 350 CFM, 500 CFM, 700 CFM, 900 CFM, 1100 CFM, 1300 CFM, 1600 CFM |
| Filter Type | Odor filter - Activated Carbon odor removal 0.003 μm, Pre filter - General Purpose 1μm, Fine filter - Oil Removal 0.01 μm, Particle filter - Particle Removal 5 μm |
