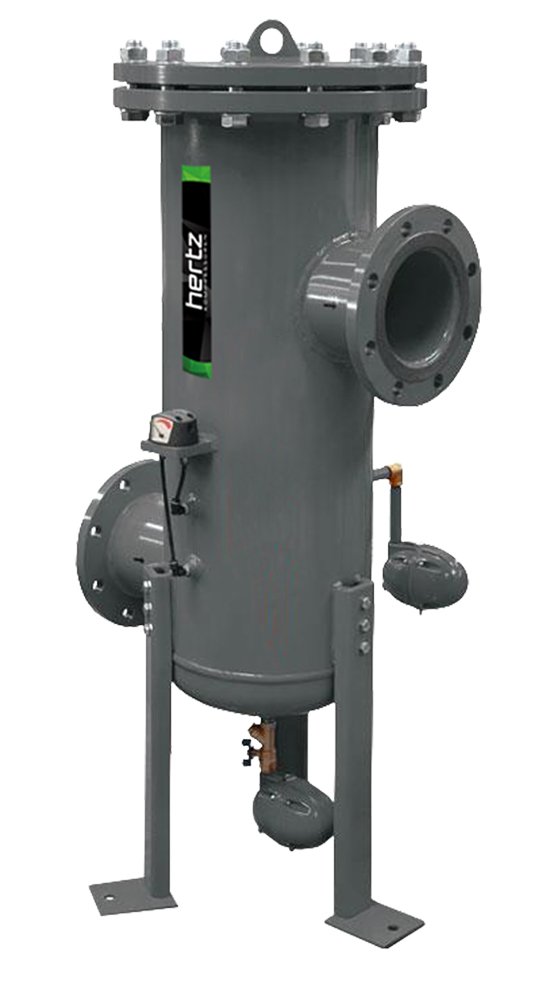

Hertz HF Series Flanged Air Filter
Flanged air filter series with a maximum capacity of 17700 CFM and a maximum operating pressure of 200 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HF Series is a line of flanged air filters with ANSI flange connections available in sizes ranging from 3in to 14in. The design of the filters allows for simple element replacement for the user. There are strong welds, allowing the filter to handle pressures up to 200 PSI. The filters feature a low pressure drop and two external floats to aid in drainage. They contain a durable epoxy powder coating and a rest-preventing anodized interior surface coating. These filters can handle a capacity range of up to 1500 to 17700 CFM, depending on model selection.
Overview and Features
Features
- Maximum capacity: 17700 CFM
- Maximum pressure: 200 PSI
- 3in ANSI to 14in ANSI flange connection sizes available
- Low pressure drop
- Strong welds
- Two external floats for drainage
- Epoxy powder coating
- Rust-preventing anodized interior surface coating
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection Options | 3in ANSI flange, 4in ANSI flange, 6in ANSI flange, 8in ANSI flange, 10in ANSI flange, 12in ANSI flange, 14in ANSI flange |
|---|---|
| Capacity Options | 1500 CFM, 1900 CFM, 2500 CFM, 3800 CFM, 5000 CFM, 6500 CFM, 8300 CFM, 10000 CFM, 12400 CFM, 15000 CFM, 17700 CFM |
| Filter Type | Pre filter - General Purpose 1 μm, Fine filter - Oil Removal 0.01 μm, Particle filter - Particle Removal 5 μm, Odor filter - Activated Carbon odor removal 0.003 μm |
