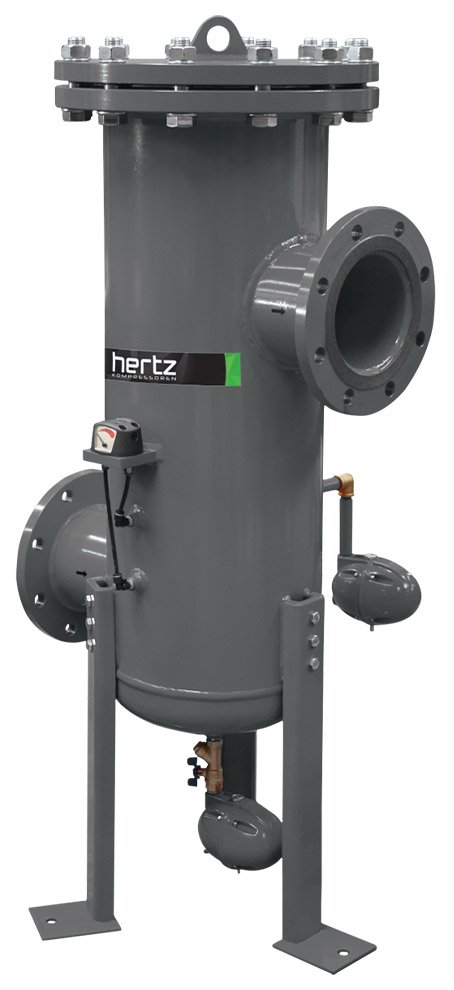

Hertz HELM-C Series Carbolescer
150 to 12000 CFM filter that utilizes multiple filtration layers to remove oil and contaminants from the air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HELM-C Series Carbolescer eliminates both aerosol and mist forms of oil. It consists of a pleated separator layer, a carbon layer, and a particulate layer. The pleated separator layer removes the aerosol form of oil. When oily compressed air enters the unit, the oil droplets coalesce and run down the filter medium. The collected liquid oil is automatically drained off. The pleated separator filters out oil contaminants as small as 0.01 microns. In addition to the pleated separator, the activated carbon layer adsorbs oil mist. The oil mist is physically retained by the activated carbon granules and as a result, the oil content can be reduced to 0.003 ppm. The final particulate filter layer actively removes carbon dust and maintains the quality of the compressed air.
Overview and Features
Features
- 150 to 12000 CFM capacities available
- 0.003 ppm remaining oil aerosol content (at 21°C)
- 200 PSI max pressure
- 2″ to 12″ ANSI flange connection (depending on model selected)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 150 CFM, 300 CFM, 600 CFM, 800 CFM, 1200 CFM, 1600 CFM, 2100 CFM, 2750 CFM, 4200 CFM, 6000 CFM, 8000 CFM, 10000 CFM, 12000 CFM |
|---|---|
| Connection Size / Type | ANSI 2" Flange, ANSI 3" Flange, ANSI 4" Flange, ANSI 6" Flange, ANSI 8" Flange, ANSI 10" Flange, ANSI 12" Flange |
