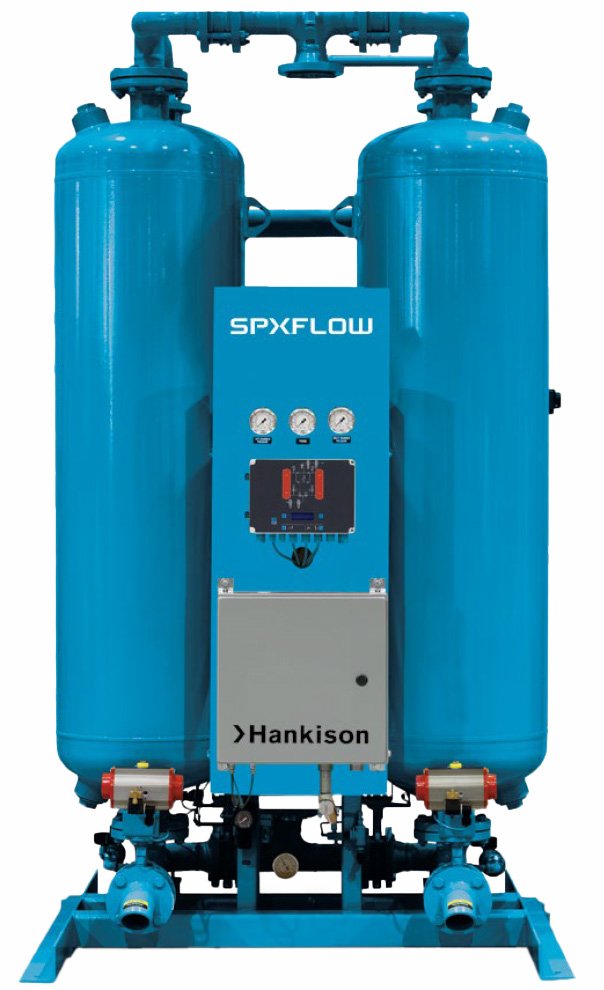

Hankison HPD Series Externally Heated Desiccant Air Dryer
300 to 3200 SCFM air dryer, 150 PSIG max operating pressure, ISO 8573.1 dew points between Class 2 and Class 3
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison HPD Series Externally Heated Desiccant Air Dryer can maintain the desired dew point (-4°F to -40°F) at maximum rated flow (100% duty cycle) with CAGI ADF 200 inlet standards of 100°F inlet temperature and 100% relative humidity at 100 PSIG.
Previously, applications had to accept a 40°F pressure dew point for seasonal freezing protection. The standard design offers ISO 8573.1 dew points between Class 2 and Class 3 automatically. Class 2 (40°F) dew points protect against freezing during low ambient conditions, while Class 3 (4°F) dew points keep your air system dry during the summer heat. Applications that require Class 2 (-40°F) dew points year-round can choose the Free-Air (FA) Supercharger option package.
Overview and Features
Features
- Soft-seated check valves
- Towers filled with extra, high-grade activated alumina
- Low-watt density heater
- Heavy-duty air intake filter
- NEMA 4 Construction
- 460/3/60 voltage standard
- 575/3/60 option available for most models
- Other options available:
- Filter packages
- Tower insulation
- EMS control with FA Supercharger
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 300 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 750 SCFM, 900 SCFM, 1050 SCFM, 1300 SCFM, 1500 SCFM, 1800 SCFM, 2200 SCFM, 2600 SCFM, 3200 SCFM |
|---|---|
| Connection Size | 1.5" NPT, 2" NPT, 3" flange, 4" flange |
| Pressure | 150 PSIG |
| Voltage | 460/3/60 |
| Filtration Package | None, Piped pre-filter and after-filter, no block valves, Piped pre-filter and after-filter, 3 valve bypass around filters/dryer |
| Tower Insulation | None, Add tower insulation |
| EMS Control | None, FA Supercharger, integrated humidity/temperature sensor, FA Supercharger, integrated humidity/temperature sensor + dew point temperature measurement |
