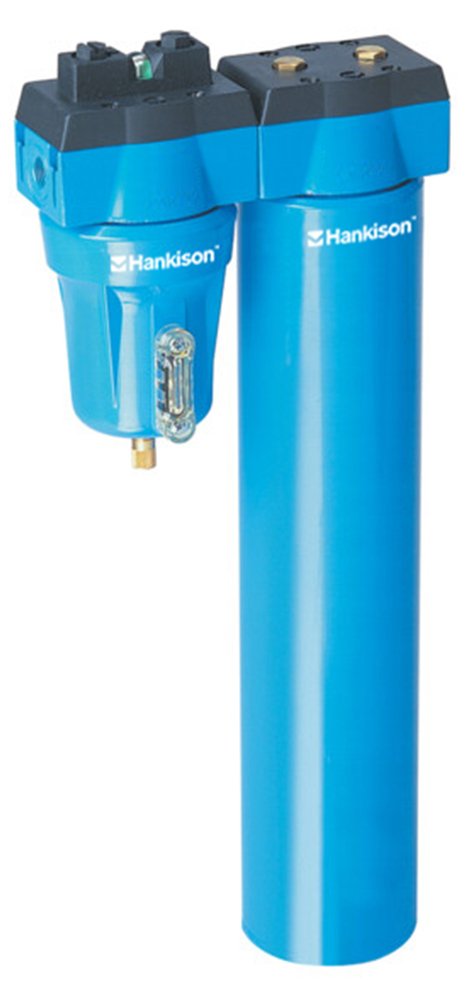

Hankison HMM Series Membrane Air Dryer
1.4 to 121 SCFM air flow rates, dries compressed air to -40°F, ISO 8573-1 class 1.2.1
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison HMM Series Membrane Air Dryer provides clean, dry compressed air wherever you need it with no electricity required. Designed for continuous flow applications, HMM Series dryers pass a constant side-stream of dry sweep air to exhaust the extracted water vapor into the ambient surroundings.
Available with one of two pre-filter packages:
- Single pre-filter: Contains one Hankison HF Series grade 5 oil removal filter.
- Dual pre-filter: Contains one Hankison HF series grade 7 air line filter and one Hankison grade 3 oil removal filter.
Overview and Features
Features
- 1.4 to 121 SCFM
- 200 PSIG max operating pressure
- 150°F max inlet temperature
- Aluminum housing material
- ISO 8573-1 class 1.2.1
- Unit must be installed with pre-filter package
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity (at 40°F pdp) | 1.4 SCFM, 4.6 SCFM, 8.5 SCFM, 13 SCFM, 22 SCFM, 36 SCFM, 61 SCFM, 94 SCFM, 121 SCFM |
|---|---|
| Connection Size | 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT |
| Pre-Filter Package | Single filter, grade 5, Dual filter, grade 7 and grade 3 |
