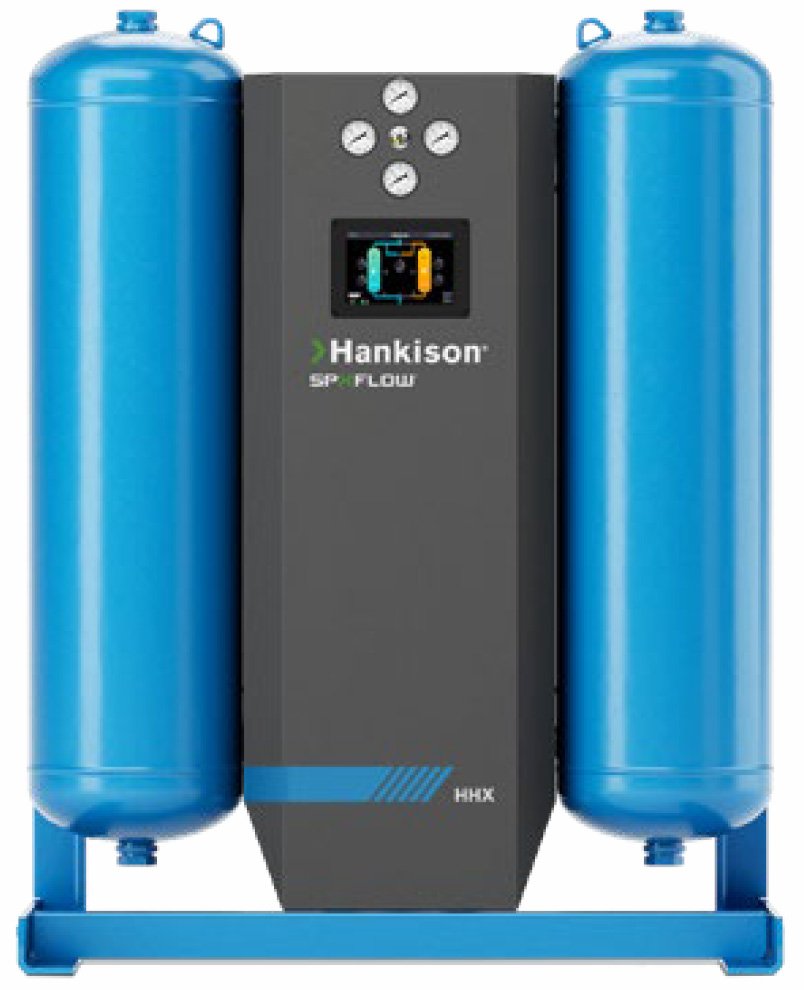

Hankison HHX Series Heatless Desiccant Air Dryer
40 to 4100 SCFM capacity dryers equipped with SensaTherm application control system, ISO 8573-1 Quality Class 1 to Class 4 outlet pressure dew points
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison HHX Series Heatless Desiccant Air Dryer efficiently dehydrates compressed air to dew points as low as ISO 8573-1 Quality Class 1 (-94°F/-70°C). Equipped with SensaTherm, it automatically matches purge air to plant air demand, ensuring maximum performance and energy savings.
When operating at a reduced capacity, the on-line drying tower remains active for a longer time until its total drying capacity is utilized. The temperature changes of the desiccant bed are continuously monitored within each tower to manage drying times and reduce purge air consumption precisely.
SensaTherm measures temperature changes to accurately determine moisture load on the dryer and control tower operation during drying and regeneration stages using microprocessor-based controls.
Applications:
- Pharmaceutical manufacturing
- Laboratories, hospitals
- Microelectronics
- Food packaging
- Paper
- Glass
- Powder painting
Overview and Features
Features
- 150 PSIG max operating pressure
- 250 PSIG option available
- 100-240/1/60 voltage
- Cleanable, stainless steel flow diffusers
- Separate fill and drain ports
- Additional options available:
- Filtration packages
- Dew point monitor mounting
- Stainless steel tubing/fittings
- Low ambient protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 40 SCFM, 60 SCFM, 90 SCFM, 115 SCFM, 165 SCFM, 260 SCFM, 370 SCFM, 450 SCFM, 590 SCFM, 750 SCFM, 930 SCFM, 1130 SCFM, 1350 SCFM, 1550 SCFM, 2100 SCFM, 3000 SCFM, 4100 SCFM |
|---|---|
| Connection Size | 1" NPT, 2" NPT, 3" flange, 4" flange, 6" flange |
| Pressure | 150 PSIG, 250 PSIG |
| Filtration | None, Basic package (one pre-filter, one after-filter), Advanced package (two pre-filters, one after-filter) |
| Filtration Package | None, Piped with no valves, Piped with 3 valves bypass |
| Dew Point Monitor Mounting | None, Mount dew point monitor |
| Stainless Steel Instrument Air Tubing/Fittings | None, Add stainless steel instrument air tubing/fittings |
| Low Ambient Protection | None, NEMA 4 |
