Hankison

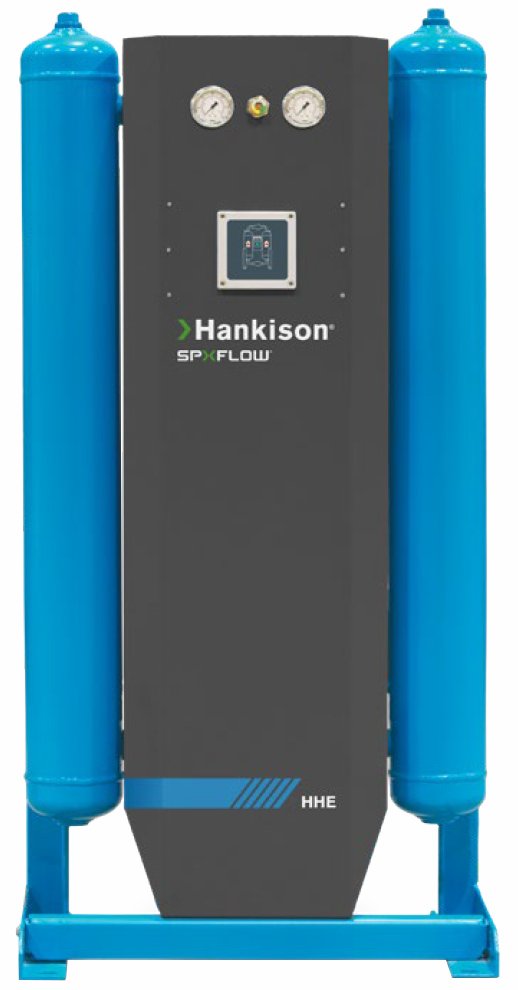

Hankison HHE Series Heatless Desiccant Air Dryer
40 to 3000 SCFM capacity dryers, ISO 8573-1 Air Quality Class 2 outlet pressure dew points
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison HHE Series Heatless Desiccant Air Dryer alternates the flow between two towers filled with premium desiccant using a simple timer. The HHE Series maximizes value for applications at or near full capacity.
Consistent performance and economy are achieved through automatic time-controlled bed regeneration cycles. While the online tower dries the air stream, the offline tower purges compressed air to dry the bed and prepare it for the next cycle.
Overview and Features
Features
- 150 PSIG max operating pressure
- 100-240/1/60 voltage
- Cleanable, stainless steel flow diffusers
- Separate fill and drain ports
- Additional options available:
- Filtration packages
- Dew point monitor mounting
- Stainless steel tubing/fittings
- Low ambient protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 40 SCFM, 60 SCFM, 90 SCFM, 115 SCFM, 165 SCFM, 260 SCFM, 370 SCFM, 450 SCFM, 590 SCFM, 750 SCFM, 930 SCFM, 1130 SCFM, 1350 SCFM, 1550 SCFM, 2100 SCFM, 3000 SCFM |
|---|---|
| Connection Size | 1" NPT, 2" NPT, 3" flange, 4" flange |
| Pressure | 150 PSIG |
| Filtration | None, Basic package (one pre-filter, one after-filter), Advanced package (two pre-filters, one after-filter) |
| Filtration Package | None, Piped with no valves, Piped with 3 valves bypass |
| Dew Point Monitor Mounting | None, Mount dew point monitor |
| Stainless Steel Instrument Air Tubing/Fittings | None, Add stainless steel instrument air tubing/fittings |
| Low Ambient Protection | None, NEMA 4 |
