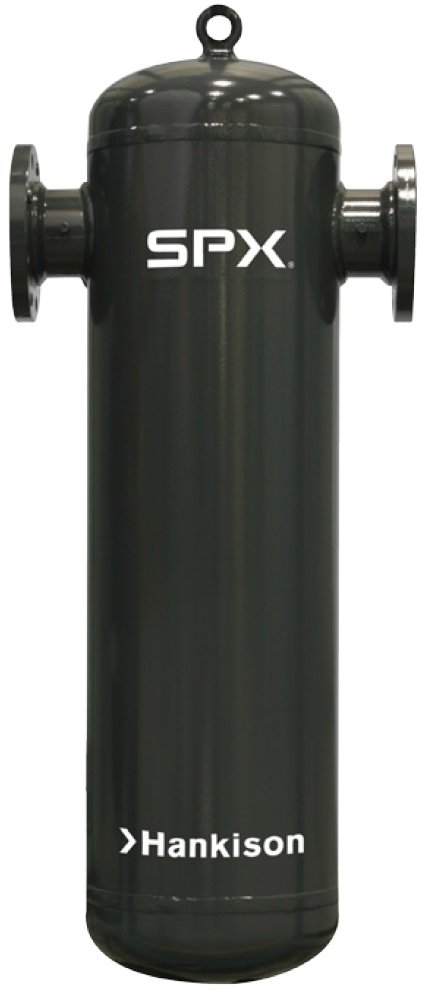

Hankison HF Series High Pressure Filter
530 to 28380 SCFM filters, available with 5 different types of filter elements for a wide range of applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison HF Series High Pressure Filter removes contaminants such as dust, dirt, rust, and pipe scale, as well as compressor lubricants (mineral or synthetic), condensed water droplets, acidic condensates, and oil and hydrocarbon vapors from high-pressure systems. This improves the quality of compressed air and reduces operating costs for applications such as plant air, instrument air, and medical air.
5 different element grades available:
- Grade 9 – Separator/Filter
- Grade 7 – General Purpose Air Line Filter
- Grade 5 – High-Efficiency Oil Removal Filter
- Grade 3 – Ultra High-Efficiency Oil Removal Filter
- Grade 1 – Oil Vapor Removal Filter
Overview and Features
Features
- 530 to 28380 SCFM flow rates available
- Standard or ASME pressure vessel housing depending on model
- Push-on elements
- Grade 9 – Separator/Filter
- Grade 7 – General Purpose Air Line Filter
- Grade 5 – High-Efficiency Oil Removal Filter
- Grade 3 – Ultra High-Efficiency Oil Removal Filter
- Grade 1 – Oil Vapor Removal Filter
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Filter Type | Grade 9: Separator/Filter, Grade 7: Air Line Filter, Grade 5: High Efficiency Oil Removal Filter, Grade 3: Maximum Efficiency Oil Removal Filters, Grade 1: Oil Vapor Removal Filter |
|---|---|
| Filter Housing | Standard housing, ASME pressure vessel |
| Capacity | 530 SCFM, 884 SCFM, 2210 SCFM, 2805 SCFM, 4000 SCFM, 4050 SCFM, 5060 SCFM, 10885 SCFM, 9900 SCFM, 12375 SCFM, 16350 SCFM, 20695 SCFM, 26340 SCFM, 28380 SCFM |
| Pressure | 1000 PSI, 500 PSI, 700 PSI, 450 PSI, 650 PSI, 440 PSI, 360 PSI, 330 PSI, 260 PSI |
| Connection | 1" NPT, 3" NPT, 4" flange, 6" flange, 8" flange |
