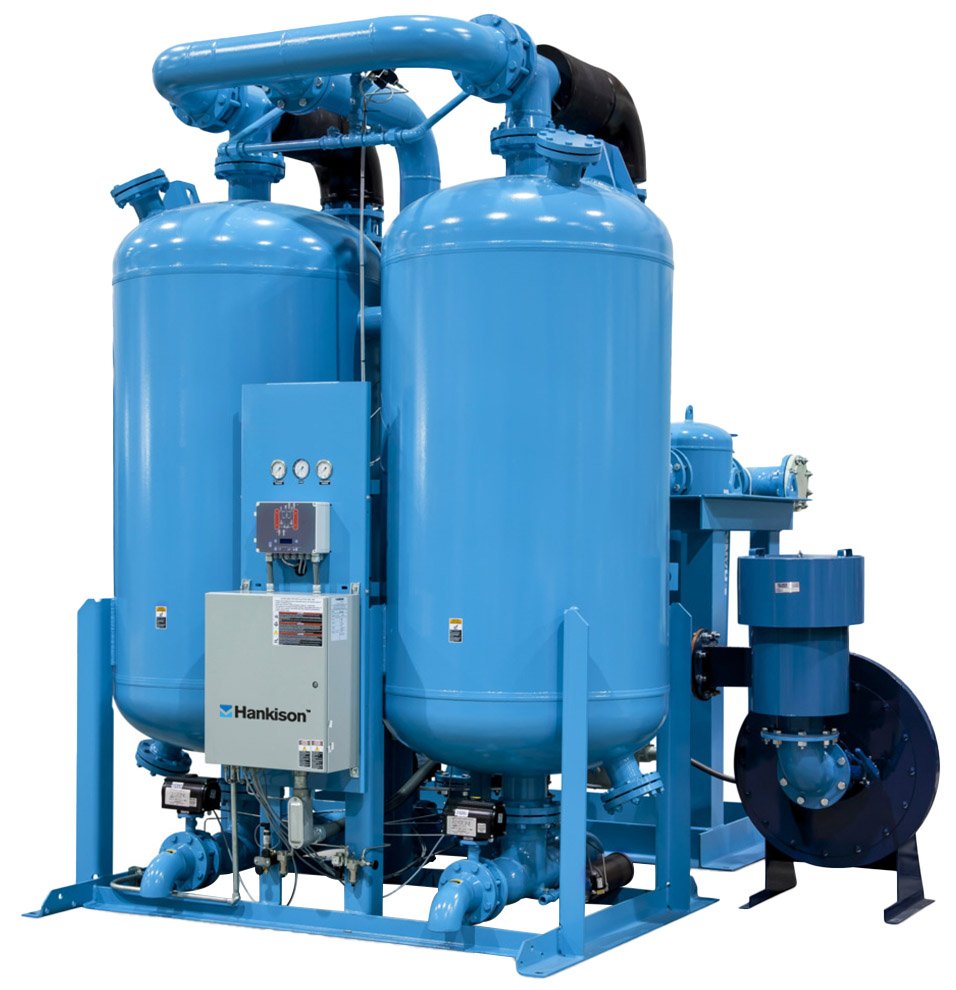

Hankison HBP Series Blower Purge Desiccant Air Dryer
500 to 12000 SCFM air dryer, 150 PSIG max operating pressure, ISO Class 2 -40°F pressure dew point
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison HBP Series Blower Purge Desiccant Air Dryer uses a dedicated axial blower for regeneration, guaranteeing Class 2 (-40°F/-40°C) dew point performance. HBP Series dryers produce the design dew point at 100°F inlet temperature and 100% relative humidity at 100 PSIG.
Blower purge-type regenerative dryers dry compressed air below the water’s freezing point. Desiccant dryers lower the dew point by adsorbing water vapor onto the desiccant surface. Two identical towers alternate between on-stream drying and off-stream regeneration to continuously supply dry air downstream. Switching between towers is controlled by the solid-state controller on a fixed-time or demand basis.
Overview and Features
Features
- Soft-seated check valves
- Towers filled with extra, industrial-grade activated alumina
- Low-watt density heater
- Pressure gauges display left tower, right tower, and purge pressure
- Function indicator LEDs
- NEMA 4 Construction
- 460/3/60 voltage standard
- Other options available:
- Filter packages
- Tower insulation
- EMS control
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 500 SCFM, 600 SCFM, 750 SCFM, 900 SCFM, 1050 SCFM, 1300 SCFM, 1500 SCFM, 1800 SCFM, 2200 SCFM, 2600 SCFM, 3200 SCFM, 3600 SCFM, 4300 SCFM, 5000 SCFM, 6000 SCFM, 7000 SCFM, 8000 SCFM, 9000 SCFM, 10000 SCFM, 12000 SCFM |
|---|---|
| Connection Size | 2" NPT, 3" flange, 4" flange, 6" flange, 8" flange, 10" flange |
| Pressure | 150 PSIG |
| Voltage | 460/3/60 |
| Filtration Package | None, Piped pre-filter and after-filter, no block valves, Piped pre-filter and after-filter, 3 valve bypass around filters/dryer |
| Tower Insulation | None, Add tower insulation |
| EMS Control | None, Integrated humidity/temperature sensor, Integrated humidity/temperature sensor + dew point temperature measurement |
