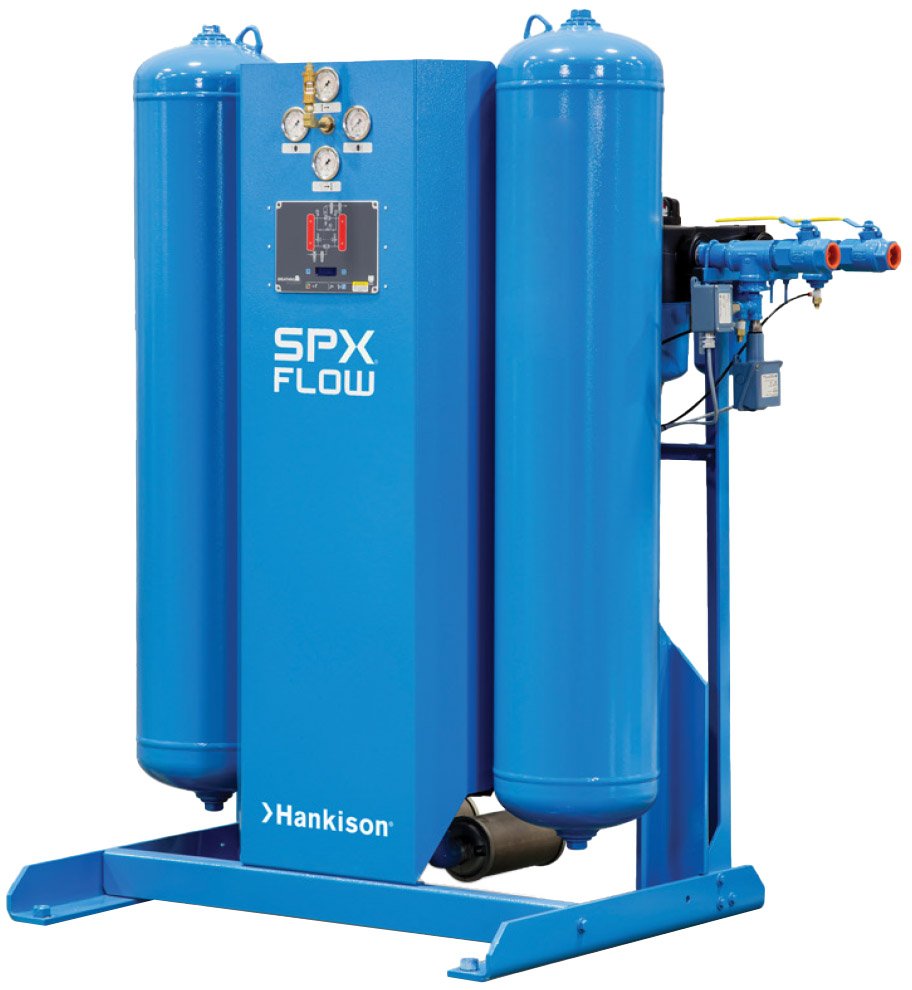

Hankison CBA Series CATALITE Breathing Air Purifier
OSHA, CSA, CGA, and ANSI compliant contaminant removing system with 6 stage filtration and a 18 to 1130 SCFM capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison CBA Series CATALITE Breathing Air Purifier utilizes Hankison’s advanced technology to deliver clean and dry air, ensuring the safety of your workers. The CBA Series is designed to convert compressed air into breathable air for hazardous processes, complementing your plant air source.
The CBA Series is designed to meet OSHA, CGA, ANSI, and CSA breathing air standards. It can handle outlet flow capacities from 15 to 940 SCFM and remove contaminants in six stages of filtration. The process involves a heatless regenerative desiccant dryer delivering consistent ISO 8573-1: 2010 Class 2 (-40°F, -40°C) outlet pressure dew point quality air in a fixed 10 minute dryer cycle.
Overview and Features
Features
- 15 to 940 SCFM outlet capacity
- 18 to 1130 SCFM inlet capacity
- 150 PSIG max pressure
- 120°F max temperature
- 100-240v / 56-60 htz voltage
- Two controller options:
- Level 1: Standard controller with fixed cycle selections for purge/dewpoint control
- Level 2: Energy savings controller with automatic purge savings system
- OSHA Grade D, CSA, CGA, and ANSI compliant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Controller | Level 1: standard controller, Level 2: energy savings controller |
|---|---|
| Inlet/Outlet Flow Capacity | 18 SCFM / 15 SCFM, 30 SCFM / 25 SCFM, 42 SCFM / 35 SCFM, 60 SCFM / 50 SCFM, 90 SCFM / 75 SCFM, 114 SCFM / 95 SCFM, 162 SCFM / 135 SCFM, 246 SCFM / 205 SCFM, 366 SCFM / 305 SCFM, 450 SCFM / 375 SCFM, 590 SCFM / 490 SCFM, 750 SCFM / 625 SCFM, 930 SCFM / 775 SCFM, 1130 SCFM / 940 SCFM |
| Pressure | 150 PSIG |
| Connection Size | 1" NPT, 1.5" NPT, 2" NPT, 3" flange |
| SSPC-10 Sandblasting | None, Add SSPC-10 sandblasting |
| Pilot and Instrument Tubing | Nylon with brass gauges and fittings, Stainless steel tubing, gauges and fittings |
| Hazardous Location Approval | None, Class 1 Div I or II group C or D |
| Multi Function Monitor (Mounted) | None, CO monitor, CO monitor with O2, CO monitor with dew point, CO monitor with O2 and dew point |
