Hankison

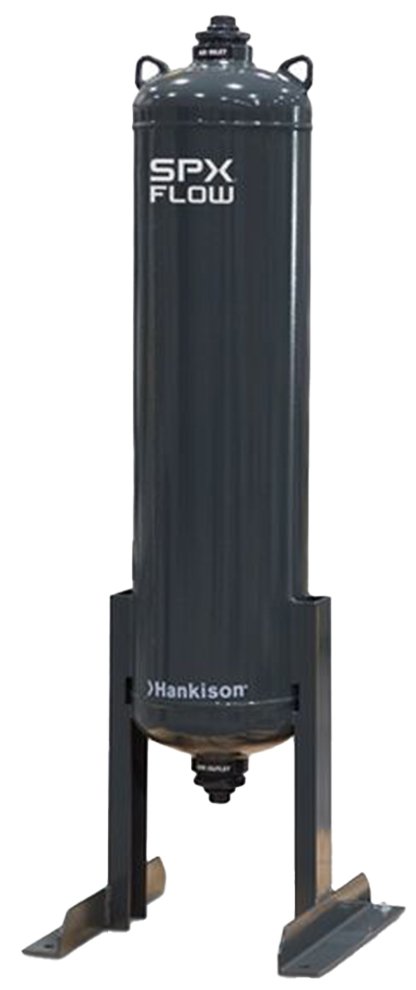

Hankison ACAT Series Adsorber Tower
60 to 5500 SCFM activated carbon adsorber
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hankison ACAT Series Adsorber Tower effectively safeguards downstream equipment by removing oil vapor from the air through the use of activated carbon.
Overview and Features
Features
- 60 to 5500 SCFM
- Pressure ratings:
- AT-4 to AT-8: 250 PSIG
- AT-10 to AT-22 and AT-26 to AT-36: 200 PSIG
- AT-24 and AT-42: 180 PSIG
- 120°F max inlet temperature
- NPT or flange connections depending on selection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 60 SCFM, 80 SCFM, 120 SCFM, 190 SCFM, 350 SCFM, 500 SCFM, 600 SCFM, 800 SCFM, 1000 SCFM, 1250 SCFM, 1500 SCFM, 1800 SCFM, 2100 SCFM, 2800 SCFM, 4000 SCFM, 5500 SCFM |
|---|---|
| Pressure | 250 PSIG, 200 PSIG, 180 PSIG |
| Connection Size | 1/2" NPT, 3/4" NPT, 1" NPT, 1.5" NPT, 2" NPT, 3" flange, 4" flange, 6" flange |
