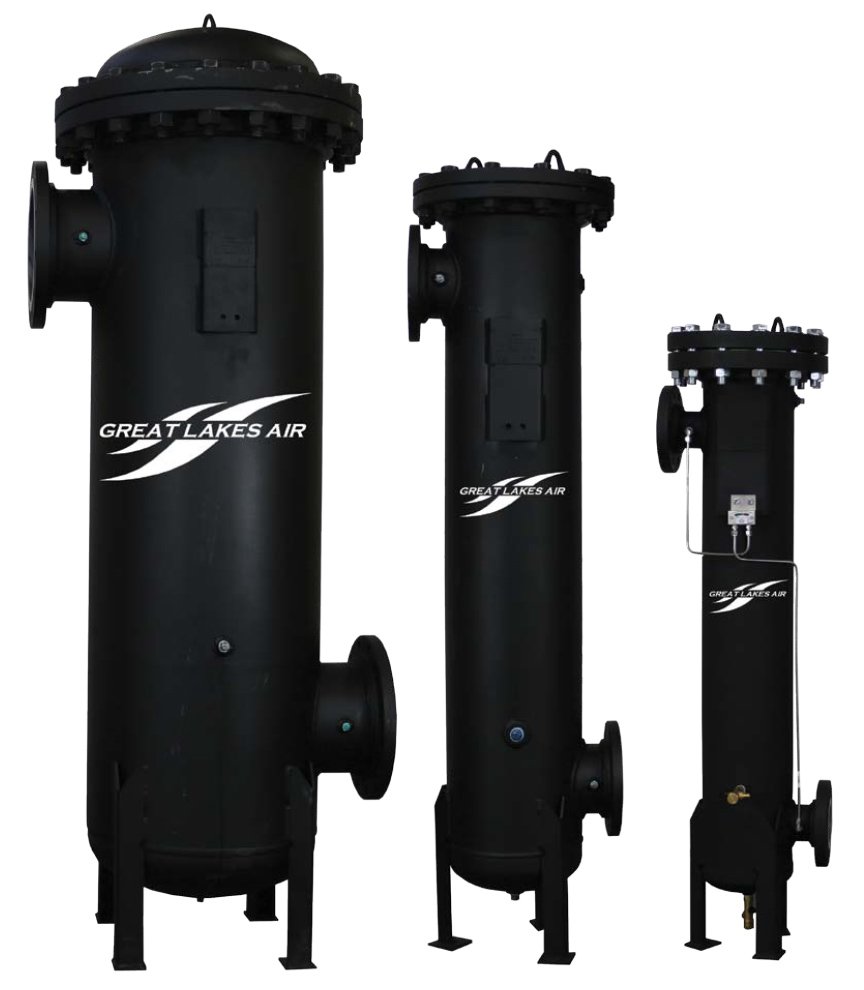

Great Lakes Air GW Series Air Filter
1500 to 1925 SCFM capacities, 3" to 12" flange connections
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Great Lakes Air GW Series Air Filter is available with 4 different filter elements.
Utility Coalescing Filtration:
- Particle Removal Down to 1 Micron
- Max. Oil Carryover 0.85 PPM w/w
- Clean Dry Pressure Drop 0.75 PSID
- Oil Saturated Pressure Drop 2.5 PSID
- ISO 8573 (Class 2)
High Efficiency Coalescing Filtration:
- Particle Removal Down to 0.01 Micron
- Max. Oil Carryover 0.008 PPM w/w
- Clean Dry Pressure Drop 1.5 PSID
- Oil Saturated Pressure Drop 4.0 PSID
- ISO 8573 (Class 1)
Particulate Filtration:
- Particle removal down to 0.1 Micron
- Clean Dry Pressure Drop 1 PSID
- Saturated Pressure Drop 2.0 PSID
- ISO 8573 (Class 3)
Mist Eliminator:
- Particle removal down to 1 Micron
- Clean Dry Pressure Drop 1.0 PSID
- Outside/In Element Flow
- ISO 8573 (Class 3)
Overview and Features
Features
- 1500 to 1925 SCFM
- Side Port Condensate Drain
- 300 PSIG Maximum Pressure
- 248°F Maximum Temperature
- Aluminum Housing
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Type | Inline T-Type, Floor Standing |
|---|---|
| Filter Element Grade | High Efficiency Coalescing (0.01 micron), Utility Grade Coalescing (0.1 micron), Mist Eliminator, Particulate / Dust Removal (1 micron) |
| Capacity | 1500 SCFM, 1700 SCFM, 2000 SCFM, 2300 SCFM, 3000 SCFM, 3400 SCFM, 4500 SCFM, 5200 SCFM, 6000 SCFM, 7000 SCFM, 10500 SCFM, 12500 SCFM, 16500 SCFM, 19250 SCFM |
| Connection | 3" flange, 4" flange, 6" flange, 8" flange, 10" flange, 12" flange |
| Drain and Gauge | Delta gauge with timed solenoid, strainer, and isolation valve, Delta pressure gauge with manual drain |
