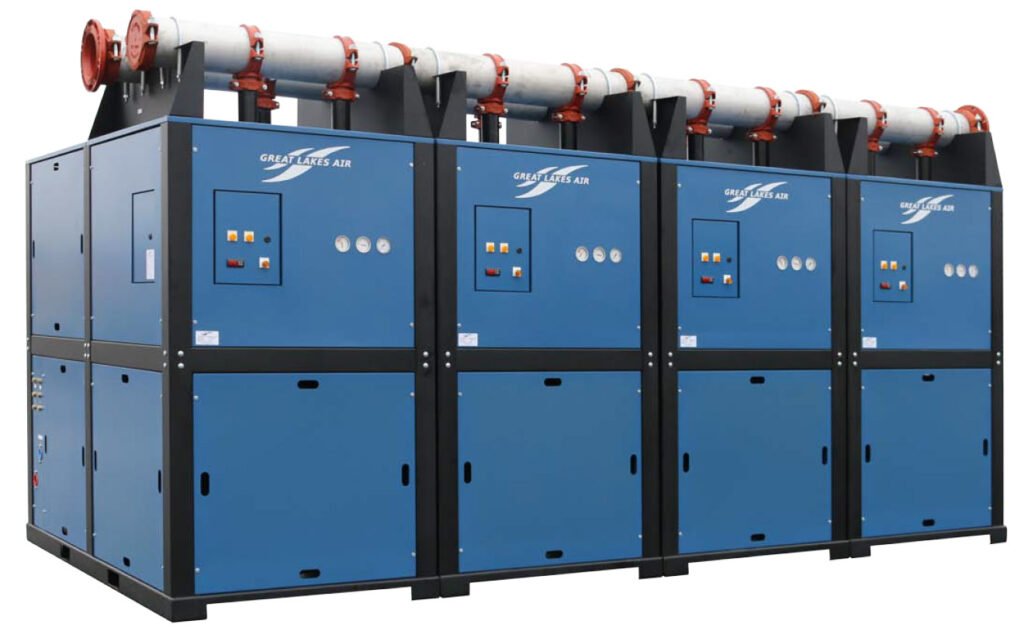

Great Lakes Air GMNF Modular Refrigerated Air Dryer
4000 to 13500 SCFM capacity dryer, utilizes ultra-low pressure drop stainless steel heat exchangers to process compressed air flows
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Great Lakes Air GMNF Modular Refrigerated Air Dryer is a modular design that utilizes ultra-low pressure drop stainless steel heat exchangers to process compressed air flows from 4000 to 13500 SCFM. As compressed air demand increases in your application, modules can be added to facilitate a streamlined system expansion. The GMNF is designed for heavy-duty industrial applications.
Overview and Features
Features
- 4000 to 13500 SCFM
- Fully hermetic refrigeration compressor
- Thermostatic expansion valves
- Refrigeration high/low pressure shutdown with HP manual reset
- Fan cycle control
- Stainless steel refrigeration gauges
- Refrigeration suction accumulators
- Available in air or water cooled models
- 5-Year Warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 4000 SCFM, 5000 SCFM, 5400 SCFM, 6000 SCFM, 7500 SCFM, 8100 SCFM, 10000 SCFM, 10800 SCFM, 12500 SCFM, 13500 SCFM |
|---|---|
| Cooling | Water cooled, Air cooled |
| Voltage | 230/3/60, 460/3/60, 575/3/60 |
