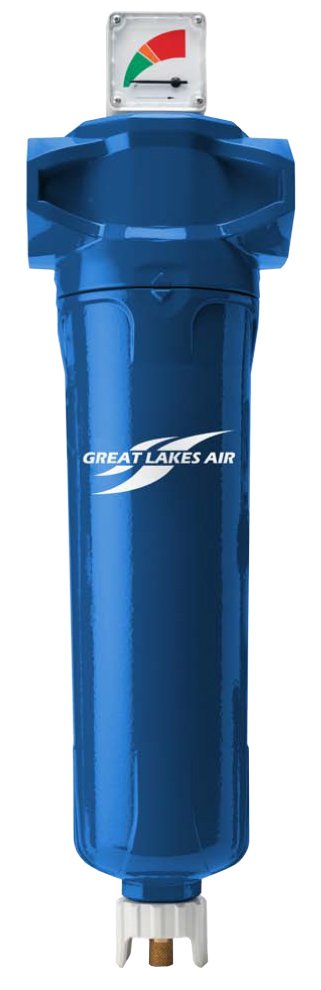

Great Lakes Air GHN Series Air Filter
20 to 1650 SCFM capacity filters, coalescing, particulate, and activated carbon elements available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Great Lakes Air GHN Series Air Filter is available with four different filter elements.
Utility Coalescing Filtration:
- Particle Removal Down to 0.1 Micron
- Max. Oil Carryover 0.09 PPM w/w
- Clean Dry Pressure Drop 1.0 PSID
- Oil Saturated Pressure Drop 2.0 PSID
- ISO 8573 (Class 2)
High Efficiency Coalescing Filtration:
- High Quality Compressed Air Filtration
- Particle Removal Down to 0.01 Micron
- Max. Oil Carryover 0.008 PPM w/w
- Clean Dry Pressure Drop 1.4 PSID
- Oil Saturated Pressure Drop 3.0 PSID
- ISO 8573 (Class 1)
Particulate Filtration:
- Particle removal down to 1 Micron
- Clean Dry Pressure Drop 1.0 PSID
- Outside / In Element Flow
- ISO 8573 (Class 3)
Carbon Adsorption Filtration:
- High purity extended surface area activated carbon removes hydrocarbon mist and vapor
- Max. Oil Carryover 0.003 PPM w/w
- Nominal Pressure Drop 1.0 PSID
Overview and Features
Features
- 20 to 1650 SCFM capacity
- Side port condensate drain
- 300 PSIG maximum pressure
- 248°F maximum temperature
- Pressure gauge option available on some models
- Automatic drain available on some models
- Aluminum housing
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 20 SCFM, 35 SCFM, 70 SCFM, 80 SCFM, 110 SCFM, 165 SCFM, 250 SCFM, 350 SCFM, 450 SCFM, 650 SCFM, 1000 SCFM, 1300 SCFM, 1650 SCFM |
|---|---|
| Filter Element Grade | Utility Grade Coalescing (0.1 micron), High Efficiency Coalescing (0.01 micron), Particulate / Dust Removal (1 micron), Activated Carbon Adsorber (0.003 PPM max oil carryover) |
| Drain and Gauge | Auto float drain, no gauge, Manual drain, no gauge, Delta pressure gauge with manual drain, Delta pressure gauge with auto float drain |
