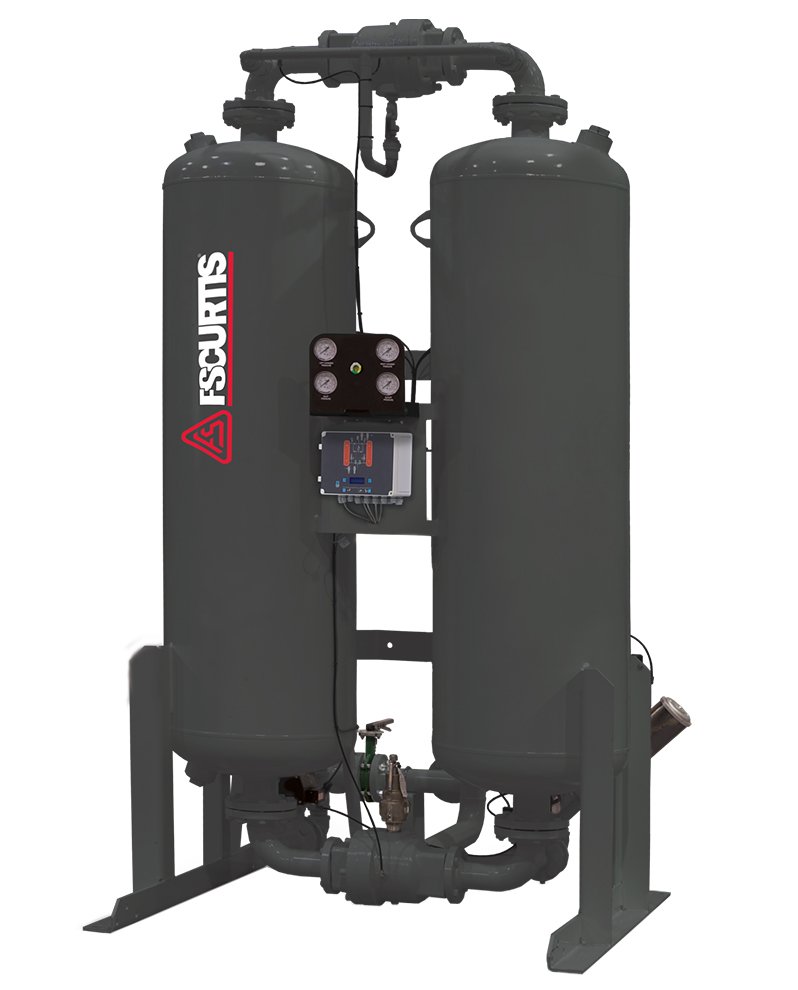

FS-Curtis DL Series Heatless Desiccant Air Dryer
Heatless dryer series with a maximum flow of 5400 scfm and options available for -40°F dew point
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FS-Curtis DL Series is a line of heatless desiccant air dryers with ASME and CRN certified pressure vessels. The dryers come in two options: DLS and DLX. The DLS option contains a timer based controller to applications that operate at or near full capacity and operates with a traditional -40°F dew point performance. The DLX comes with a code controller with Sensatherm to automatically purge air use to the demand on the system.
The entire DL series also features up-flow drying which allows water and heavy contaminants to drop out of the air stream. There are premium grade desiccant beads to enhance the surface are of the dryer, requiring minimum purge air and contains high crush strength. Additionally, the precision switch valves automatically shift to the low pressure side of the circuit to control the process flow.
Overview and Features
Features
- Performance options available:
- Coda controller with automatic sensatherm energy savings
- -40°F dew point performance
- Maximum flow: 5400 scfm
- Maximum working pressure: 150 psig
- Connection options:
- 1 to 2in NPT
- 3 to 6in ANSI flange
- Certified to UL 1995/CSA 22.2 No. 236-05
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Performance Option | Traditional; -40°F dew point performance, Coda controller with Sensatherm technology |
|---|---|
| Inlet Flow | 40 scfm, 60 scfm, 90 scfm, 115 scfm, 165 scfm, 260 scfm, 370 scfm, 450 scfm, 590 scfm, 750 scfm, 930 scfm, 1130 scfm, 1350 scfm, 1550 scfm, 2100 scfm, 3000 scfm, 4100 scfm, 5400 scfm |
