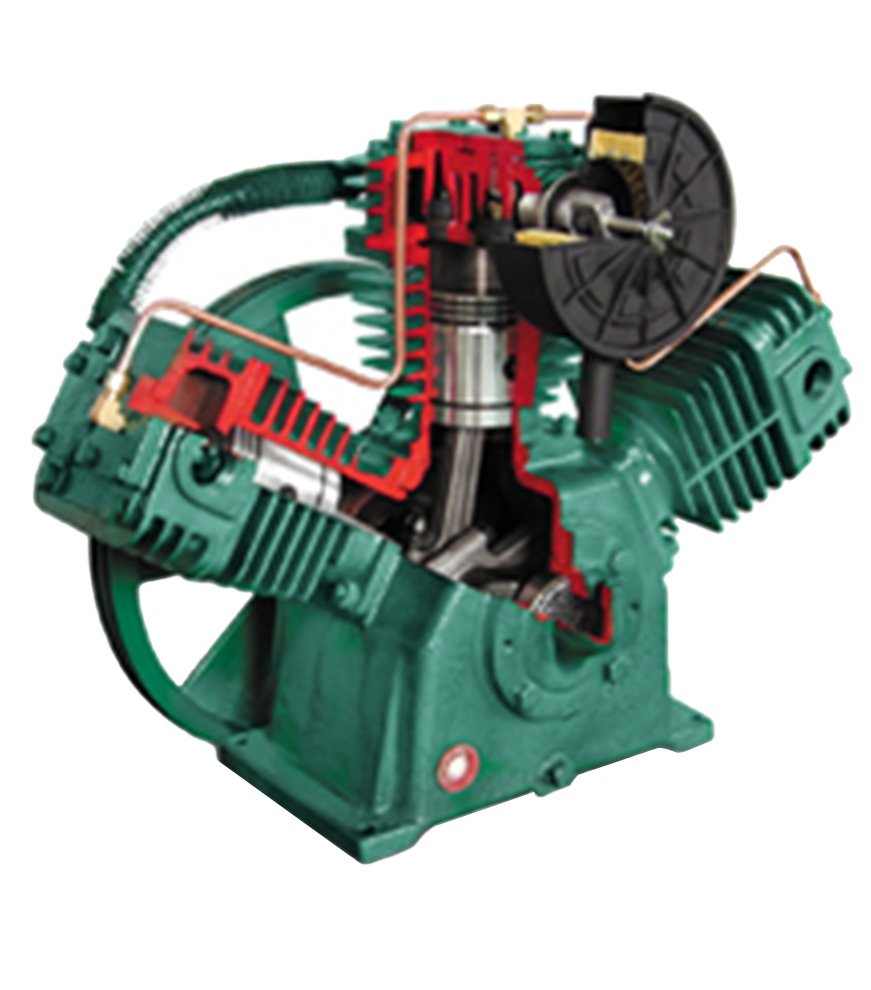

FS-Curtis CA Series Single Stage Piston Air Compressor Pump
Single stage replacement pump with splash lubrication and cast iron construction
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Overview and Features
Features
- 0.75 to 15 HP
- 3.1 to 53.3 CFM capacity
- Cast iron crank case
- Heavy duty ductile iron crankshaft
- Dynamically balanced flywheel
- Cast iron cylinders
- Large intake filter with silencers
- Suction valve head unloader
- Large main roller bearings
- Intercooler with radiating fins
- Oil sight glass
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.75 HP, 2 HP, 3 to 5 HP, 5 HP, 5 to 7.5 HP, 10 HP, 15 HP |
|---|---|
| Capacity | 3.1 CFM, 7 CFM, 10.4 CFM, 14.3 CFM, 19.5 CFM, 37.7 CFM, 53.3 CFM |
