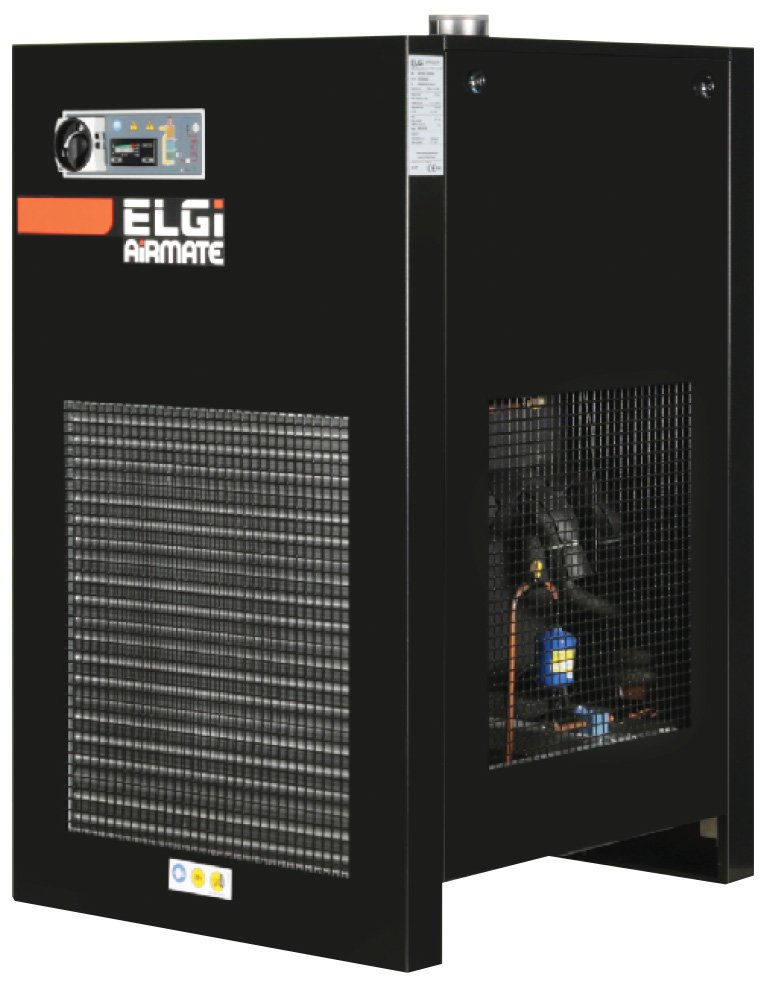

ELGi EGRD Airmate Refrigerated Air Dryer
High efficiency aluminum plate type heat extractor, copper tubed aluminum fin condenser, air cooled, capacity up to 1500 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi Airmate refrigerated air dryer is suitable for applications where a constant dew point is required. The Airmate ensures clean and dry compressed air for the reliable working of the compressed air systems by efficiently removing condensate and other contaminants. The addition of an optional pre-filter removes particles down to 1 micron, further cleaning the air and reducing maintenance of you system.
Overview and Features
Features
- 10 to 1500 CFM models available
- Max working pressures:
- 232psi (EGRD 010 to EGRD 050)
- 203psi (EGRD 080 and up)
- Hot gas by-pass valve regulation
- 115/1/60, 230/1/60, or 460/3/60 voltage available (depending on selection)
- Refrigerant:
- R134a (up to EGRD 200)
- R404C (above EGRD 200)
- UL/CSA Certified
See the accessories tab for optional pre-filters related to this product.
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Flow | 10 CFM, 15 CFM, 20 CFM, 35 CFM, 50 CFM, 65 CFM, 75 CFM, 100 CFM, 125 CFM, 150 CFM, 175 CFM, 220 CFM, 300 CFM, 375 CFM, 480 CFM, 600 CFM, 800 CFM, 900 CFM, 1000 CFM, 1250 CFM, 1500 CFM |
|---|---|
| Dryer Outlet | 3/8" NPT, 1/2" NPT, 1" NPT, 1.25" NPT, 1.5" NPT, 2" NPT, 2.5" NPT, 3" flange, 4" flange |
| Voltage | 115/60/1, 230/60/1, 460/60/3 |
