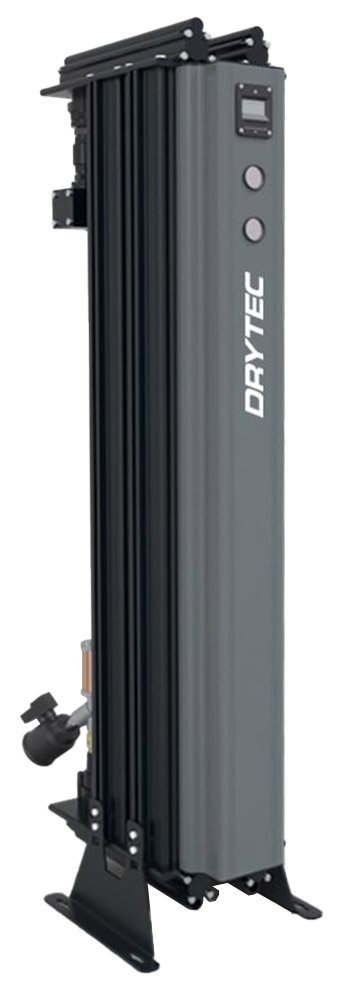

DRYTEC SDM-US Series Modular Heatless Desiccant Air Dryer
5 to 1060 SCFM, -40°F dewpoint standard, 230 PSIG max pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DRYTEC SDM-US Series Modular Heatless Desiccant Air Dryer is a lightweight and compact design that offers total installation flexibility to meet specific needs. The SDM-US Series is less than half the weight and size of a traditional twin-tower design, allowing even the largest models to be easily moved through a standard doorway.
The SDM-US Series is available in capacities from 5 to 1060 ACFM with a pressure dew point of -40°F (optional -100°F). The SDM-US Series is one of the industry’s lowest pressure drop desiccant dryers using a highly engineered inlet and purge manifold design. Each dryer includes 2 pre-filters and 1 post-filter.
Overview and Features
Features
- 5 to 1060 SCFM capacities
- 230 PSIG max working pressure
- 122°F max air inlet temperature
- -40°F dewpoint standard
- 110-230/1/50/60 voltage
- Additional options:
- -100°F dewpoint
- Visual moisture indicator
- Low ambient
- Cycle Control/Purge Saver options
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 5 SCFM, 10 SCFM, 15 SCFM, 20 SCFM, 25 SCFM, 30 SCFM, 40 SCFM, 50 SCFM, 60 SCFM, 75 SCFM, 100 SCFM, 120 SCFM, 180 SCFM, 240 SCFM, 340 SCFM, 400 SCFM, 500 SCFM, 590 SCFM, 735 SCFM, 890 SCFM, 1060 SCFM |
|---|---|
| Connection Size | 1/2" NPT, 1" NPT, 1-1/2" NPT, 2" NPT, 3" NPT |
| Controller | Mini PLC (Standard), Crouzet Basic DCC Cycle Control Purge Saver, DCC Cycle Control Purge Saver with PLC & HMI |
| Additional Options | -100°F Dewpoint, Low Ambient |
