DRYTEC

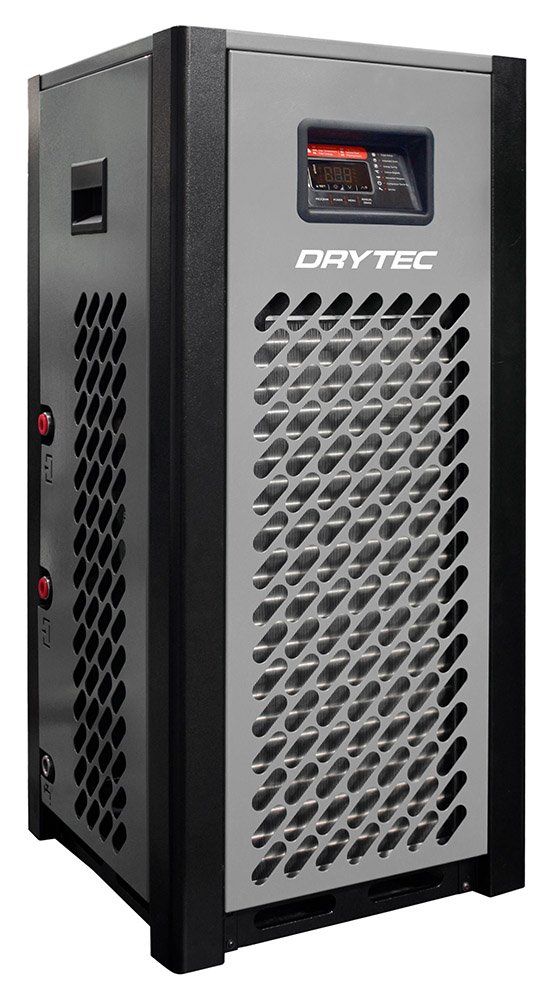

DRYTEC SDH-US Series High Temperature Refrigerated Air Dryer
15 to 100 SCFM, 240°F max air inlet temperature, ideal for piston / reciprocating air compressors
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DRYTEC SDH-US Series High Temperature Refrigerated Air Dryer is designed to handle inlet air temperatures up to 240°F and a max pressure of 230 PSI. This design makes this dryer ideal for newer rotary screw or piston air compressors without an aftercooler.
Overview and Features
Features
- 15 to 100 SCFM capacities
- 230 PSIG max working pressure
- 240°F max air inlet temperature
- Built-in aftercooler and water separator
- R134a refrigerant
- 115/1/60 voltage
- 1/2″ NPT connection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 SCFM, 25 SCFM, 35 SCFM, 50 SCFM, 75 SCFM, 100 SCFM |
|---|
