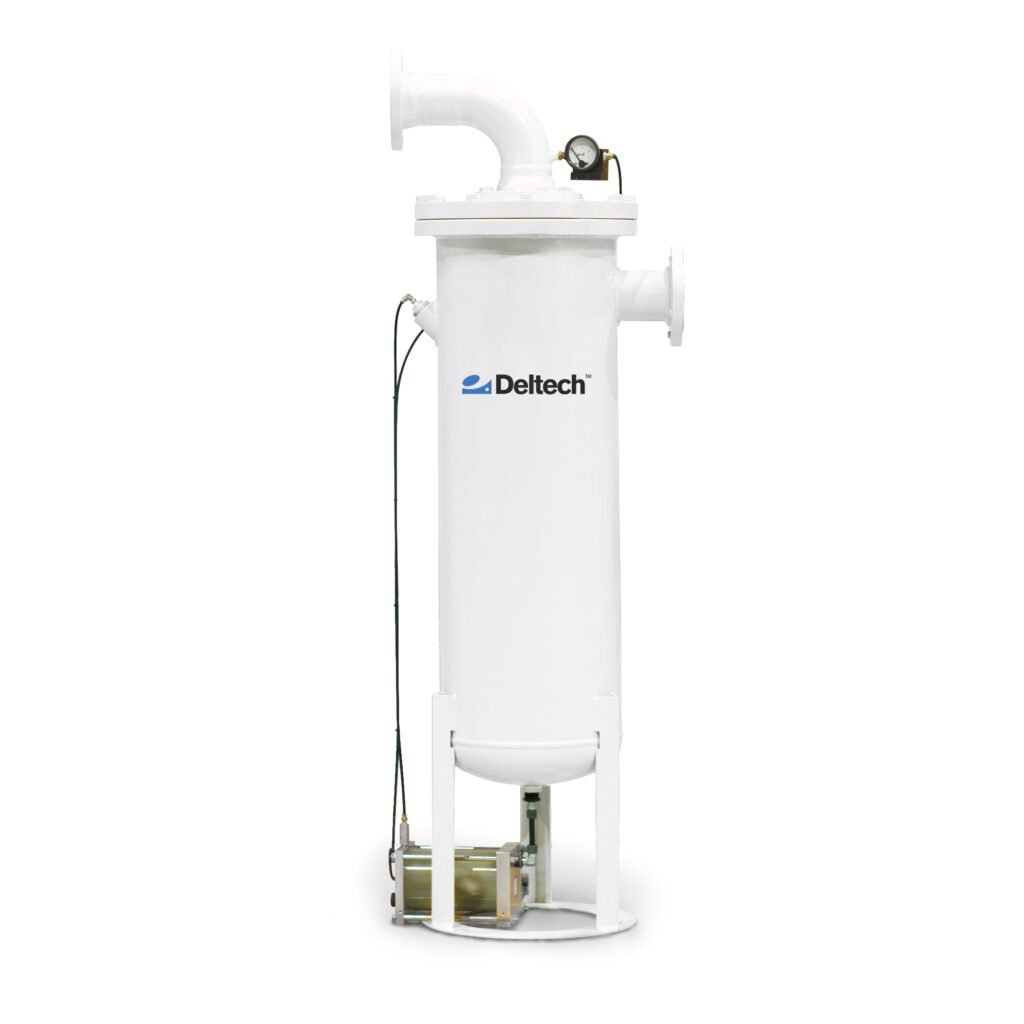

Deltech ME Series Mist Eliminator
0.1 micron eliminator with a 125 to 3,000 SCFM capacity range and 0.5psig wetted-element pressure drop
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech ME Series mist eliminator is designed for flows from 125 to 3,000 SCFM.The compressed air stream enters the interior cavity of the filter element via the top inlet connection. Dense layering of filter media allows the irregular, zigzagging Brownian motion to progressively capture finer liquids and particulates on each layer. Smooth laminar flow characteristics maintain efficiency and low pressure drop across the entire range of flow. Coalesced liquids drain by gravity into the sump. Re-entrainment is prevented due to low velocities. The Deltech ME Series comes with a differential pressure indicator and dedicated drainage port.
Overview and Features
Features
- 99.95% solid particulate removal
- 0.1 micron liquid removal
- 0.5 ppm oil droplets and mist removal
- 10 year element life
- 150psig max operating pressure
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 125 SCFM, 250 SCFM, 500 SCFM, 1100 SCFM, 1500 SCFM, 1900 SCFM, 2400 SCFM, 3000 SCFM |
|---|---|
| Connection | 2" NPT, 2-1/2" NPT, 4" Flange |
