Deltech

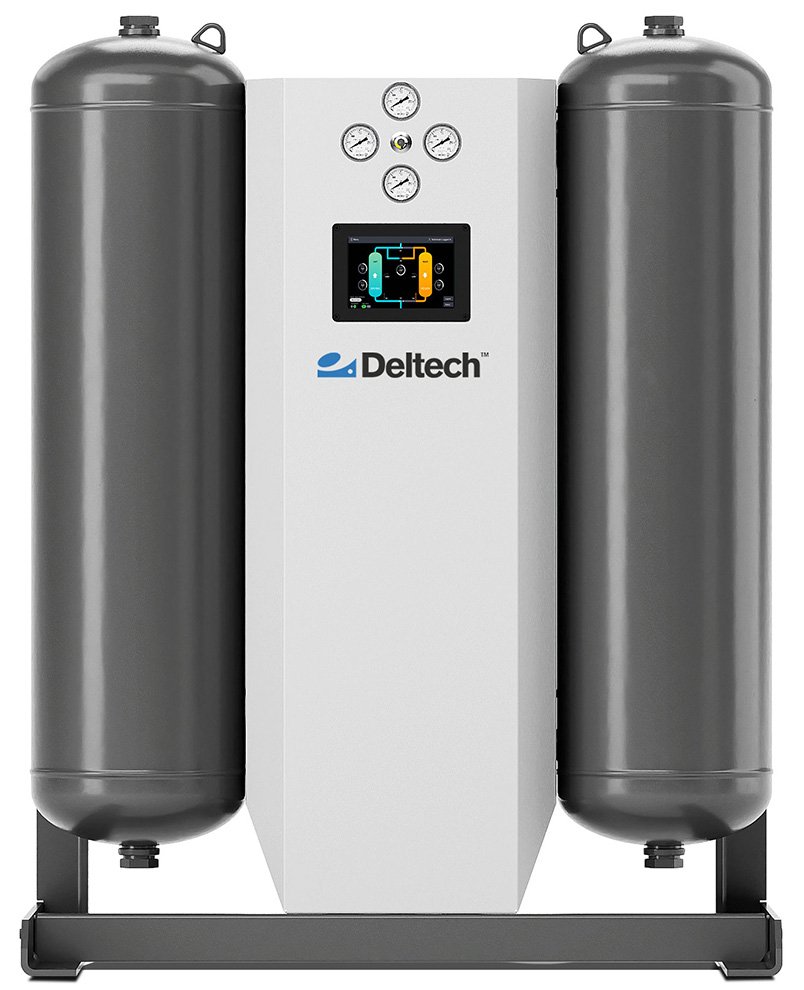

Deltech HCX Series Heatless Desiccant Air Dryer
40 to 5400 CFM, SensaTherm auto purge saving system, dew points as low as ISO 8573-1 Quality Class 1
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech HCX Series Heatless Desiccant Air Dryer is designed to dehydrate compressed air to dew points as efficiently low as ISO 8573-1 Quality Class 1.
SensaTherm measures the increase in desiccant bed temperature during the drying stage and the decrease in desiccant bed temperature during the regeneration stage. These temperature changes are accurate indicators of the moisture load on the dryer. A microprocessor-based control system interprets this data to determine the duration a tower stays online during the drying stage.
Overview and Features
Features
- 40 to 5400 CFM capacities
- 150 PSI max working pressure
- dew points as low as ISO 8573-1 Quality Class 1
- SensaTherm Auto Purge Saving System
- 7” LCD, Capacitive Color Touchscreen
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Flow Rate | 40 CFM, 60 CFM, 90 CFM, 115 CFM, 165 CFM, 260 CFM, 370 CFM, 450 CFM, 590 CFM, 750 CFM, 930 CFM, 1130 CFM, 1350 CFM, 1550 CFM, 2100 CFM, 3000 CFM, 4100 CFM, 5400 CFM |
|---|---|
| Connection Size | 1" NPT, 2" NPT, 3" FLG, 4" FLG, 6" FLG |
