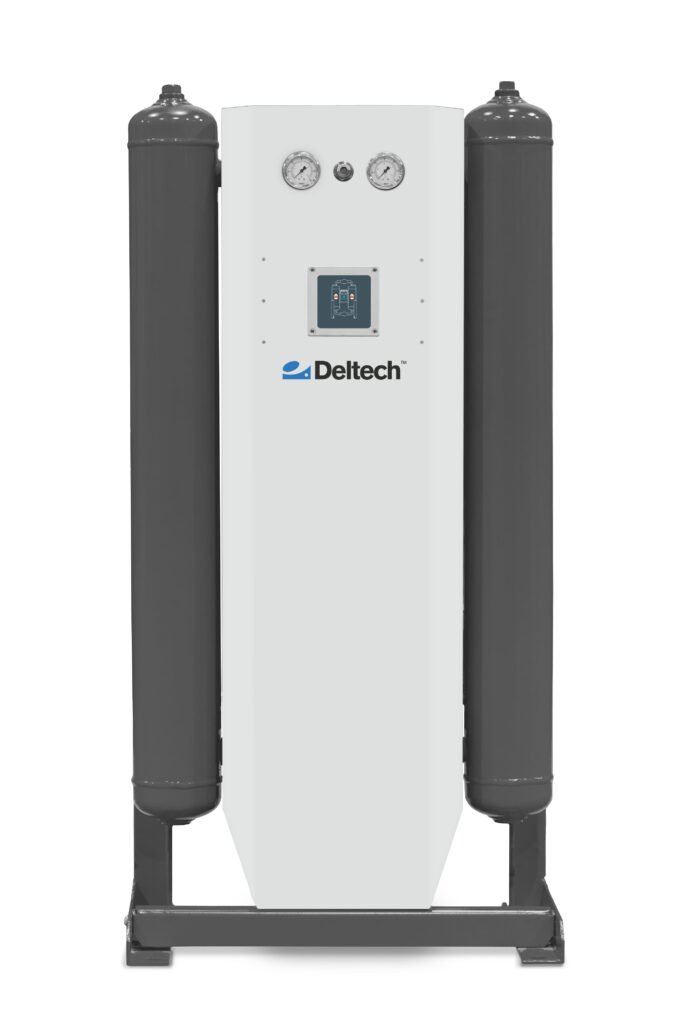

Deltech HCT Series Heatless Desiccant Air Dryer
Utilizes a simple timer to alternate the flow between the two towers filled with premium grade desiccant, dew point starting at -40° F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech HCT Series heatless desiccant air dryer is designed for applications that operate at or near full capacity. Automatic time controlled bed regeneration cycles offer consistent performance. The HCT Series uses a simple timer to alternate the flow between the two towers filled with premium grade desiccant. While the online tower is drying the air stream, the offline tower purges a fixed amount of compressed air to dry the bed and prepare for the next drying cycle.
Applications
- Pharmaceutical manufacturing
- Laboratories
- Hospitals
- Microelectronics
- Food packaging
- Powder painting
Overview and Features
Features
- 40 to 3000 SCFM capacity
- 150 PSI max working pressure
- 140°F max inlet air temperature
- Less than 5 PSI pressure drop at rated flow
- ISO Quality Class 2 rating
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Flow Rate | 40 CFM, 60 CFM, 90 CFM, 115 CFM, 165 CFM, 260 CFM, 370 CFM, 450 CFM, 590 CFM, 750 CFM, 930 CFM, 1130 CFM, 1350 CFM, 1550 CFM, 2100 CFM, 3000 CFM |
|---|---|
| Connection Size | 1" NPT, 2" NPT, 3" FLG, 4" FLG |
| Filtration Package | None, Basic Filtration Package - No Valves, Basic Filtration Package with 3-Valve Bypass, Advanced Filtration Package - No Valves, Advanced Filtration Package with 3-Valve Bypass |
