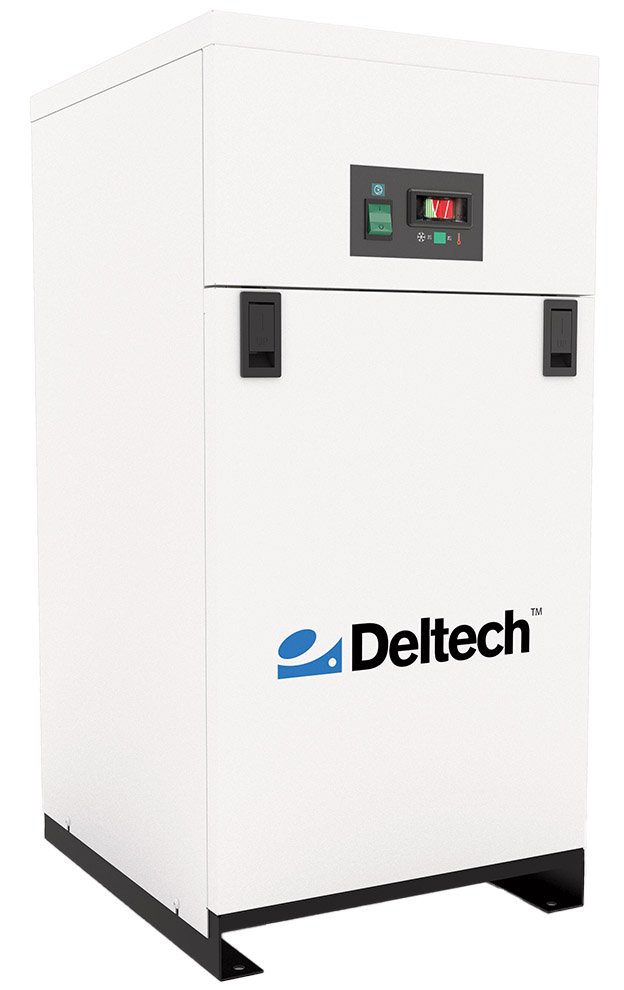

Deltech DRHT Series High Inlet Temperature Refrigerated Air Dryer
15 to 100 SCFM capacity dryer accepting high temperature air up to 200°F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech DRHT Series High Inlet Temperature Refrigerated Air Dryer is designed for reliable high‑temp drying up to 200°F while delivering sustainable performance through low‑GWP R513A refrigerant across the 15 to 100 SCFM range. The DRHT Series offers durable construction, easy installation, proven efficiency, and a climate‑friendly refrigerant that supports long‑term sustainability goals.
Overview and Features
Features
- 15 to 100 SCFM capacity
- 200°F max inlet air temperature
- Heat Exchangers:
- 15 to 35 SCFM: Brazed plate
- 60 to 100 SCFM: Aluminum plate‑fin
- Integrated moisture separator
- Operated zero-loss drain
- Automatic refrigeration controls
- 115V/60Hz plug and play design
- Smart controller (60 to 100 SCFM models)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 SCFM, 25 SCFM, 35 SCFM, 60 SCFM, 80 SCFM, 100 SCFM |
|---|---|
| Connection | 3/4in NPT, 1in NPT |
