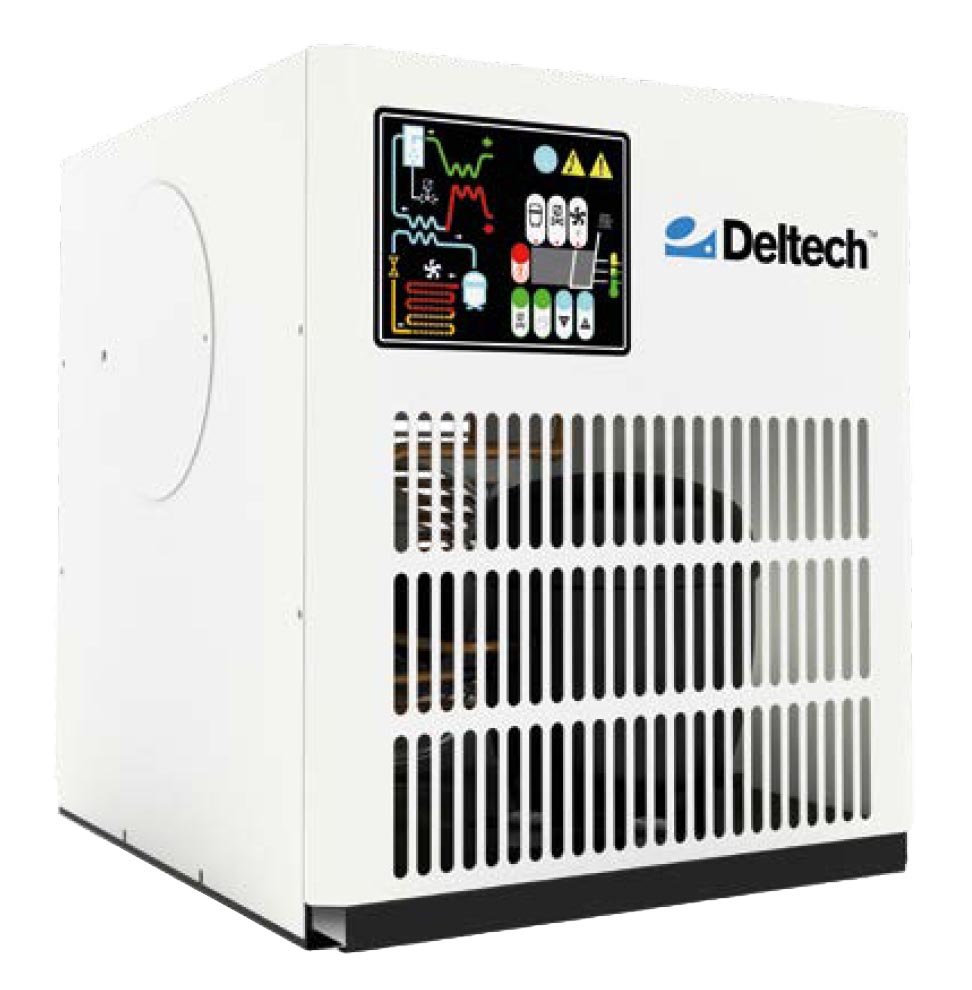

Deltech DPRB Series Non-Cycling Refrigerated Air Dryer
7 to 1200 SCFM, 115/1/60 or 460/3/60 voltage, consistent 50°F (+10°C) pressure dew point, 5-year warranty
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech DPRB Series Non-Cycling Refrigerated Air Dryer features a compact footprint for easy and flexible installation. Available in 7 to 1200 SCFM capacities, the DPRB Series maintains stable operation and consistent dew point performance across varying load conditions.
Overview and Features
Features
- 7 to 1200 SCFM capacity
- 200 PSIG max inlet air pressure
- 120˚F max inlet air temperature
- Heat Exchanger:
- Copper coil (7 to 15 SCFM)
- Aluminum 3-in-1 Pre-cooler/Re-heater, with chiller, built-in moisture separator (25 to 50 SCFM)
- Stainless steel, cross flow (75 to 1200 SCFM)
- Voltage:
- 115/1/60: 7 to 150 SCFM models
- 460/3/60: 200 to 1200 SCFM models
- Pneumatic float drain (7 to 15 SCFM) and electronic drain valve (25 to 50 SCFM)
- R513A refrigerant
- Third-party certified to UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, and CSA 22.2 #60335-2-40 for safe operation in the U.S. and Canada
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 7 SCFM, 11 SCFM, 15 SCFM, 25 SCFM, 32 SCFM, 42 SCFM, 50 SCFM, 75 SCFM, 100 SCFM, 125 SCFM, 150 SCFM, 200 SCFM, 250 SCFM, 300 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 800 SCFM, 1000 SCFM, 1200 SCFM |
|---|---|
| Connections | 3/8" MNPT, 1/2" FNPT, 1" MNPT, 2" MNPT, 3" Flange, 4" Flange |
| Voltage | 115/1/60, 460/3/60 |
| Filter Package | None, Add filtration package |
