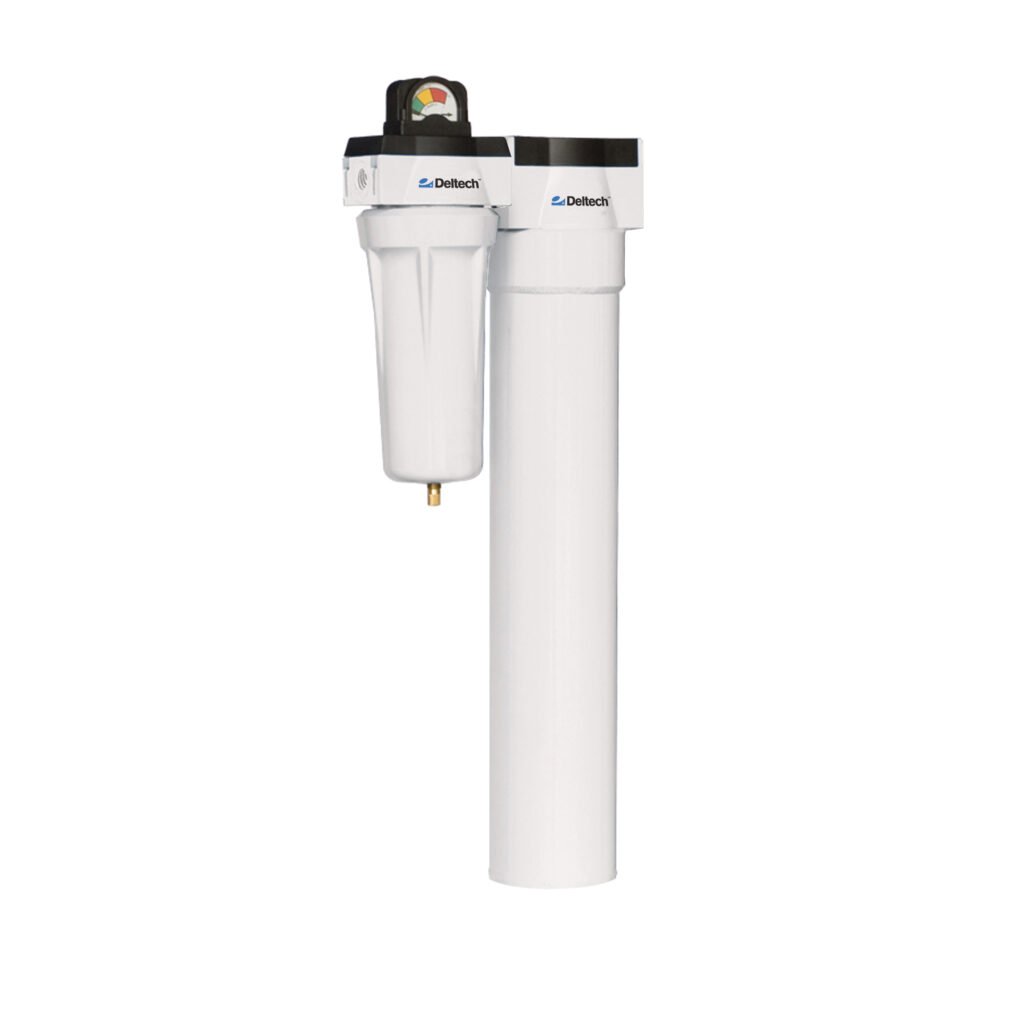

Deltech DMD Series Membrane Air Dryer
Modular dryer with 1.4 to 121 SCFM capacity at point-of-use and single filter for continuous flow applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech DMD Series membrane air dryer is designed to use a stream of compressed air to trap and periodically vent water vapor from 1.4 to 121 SCFM flow capacity at point-of-use. Through the process of selective permeation, water vapor is removed while leaving the gas composition intact. Each membrane bundle is comprised of multiple tubular membrane fibers, evenly spaced to provide maximum surface area in a compact design. Each helically wrapped layer alternates direction to ensure consistent cross-sectional density and large flow paths for the sweep air that carries the water vapor to atmosphere. No oxygen is lost, which makes the DMD Series membrane air dryer ideal for medical applications.
Overview and Features
Features
- 1.4 to 121 SCFM capacity
- 40°F pressure dew point
- 200psig max operating pressure
- 150°F max inlet temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 1.4 SCFM, 4.6 SCFM, 8.5 SCFM, 13 SCFM, 22 SCFM, 36 SCFM, 61 SCFM, 94 SCFM, 121 SCFM |
|---|---|
| Connection | 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT |
| Pre-Filter | None, Single Filter - DF Grade B high efficiency oil removal filter, Dual Filter - DF Grade C air line filter + Grade A maximum efficiency oil removal filter |
