Deltech

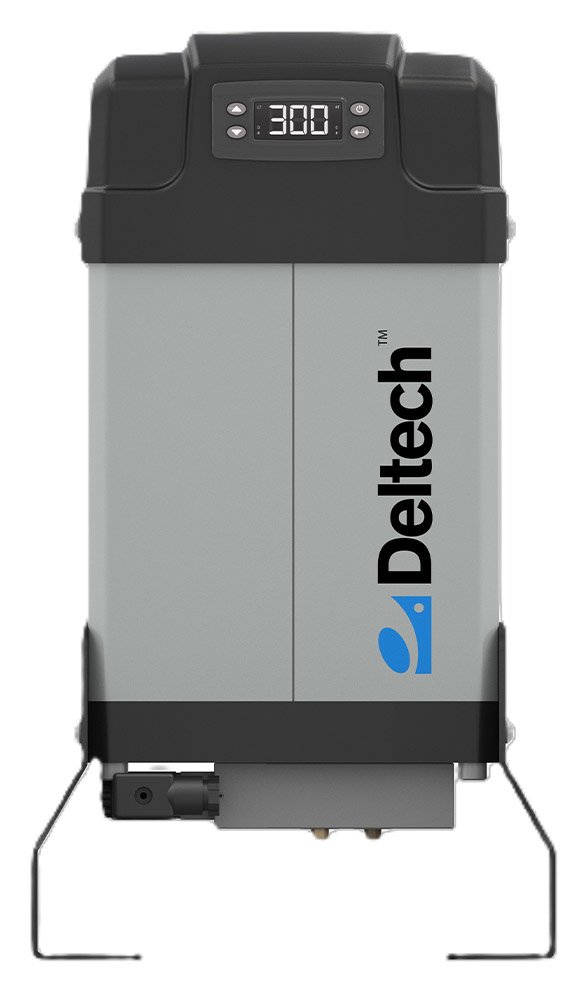

Deltech DHDM Series Modular Heatless Desiccant Air Dryer
3 to 177 SCFM dryer, delivers dew points of ISO 8573-1: 2010 Class 1 (-94°F, -70°C) and Class 2 (-40°F, -40°C)
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech DHDM Series Modular Heatless Desiccant Air Dryer is ideal for point of use, laboratories and confined areas. They provide a continuous supply of dry compressed air by automatically cycling the flow of air through two desiccant beds. The DHDM Series features robust communications, is CSA/UL approved, and CRN registered. As powerful as it is versatile, the DHDM Series is designed and proven to protect moisture-sensitive applications requiring low-pressure dew points by delivering dew points of ISO 8573-1: 2010 Class 1 (-100°F, -70°C) and Class 2 (-40°C).
Overview and Features
Features
- 3 to 177 SCFM
- NGF Series Filter Packages Standard:
- Grade H3 coalescing prefilter captures oil down to 0.008 mg/m3
- Grade P3 afterfilter removes solids 1.0 micron and larger
- -40°F dewpoint standard, -100°F optional
- EMS controller option available (24 to 177 SCFM only)
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Dewpoint | -40°F, -100°F |
|---|---|
| Capacity | 3 SCFM, 9 SCFM, 15 SCFM, 24 SCFM, 32 SCFM, 41 SCFM, 59 SCFM, 88 SCFM, 118 SCFM, 147 SCFM, 177 SCFM, 19 SCFM, 26 SCFM, 33 SCFM, 47 SCFM, 74 SCFM, 94 SCFM, 142 SCFM |
| Controller | Standard Controller, EMS Controller |
