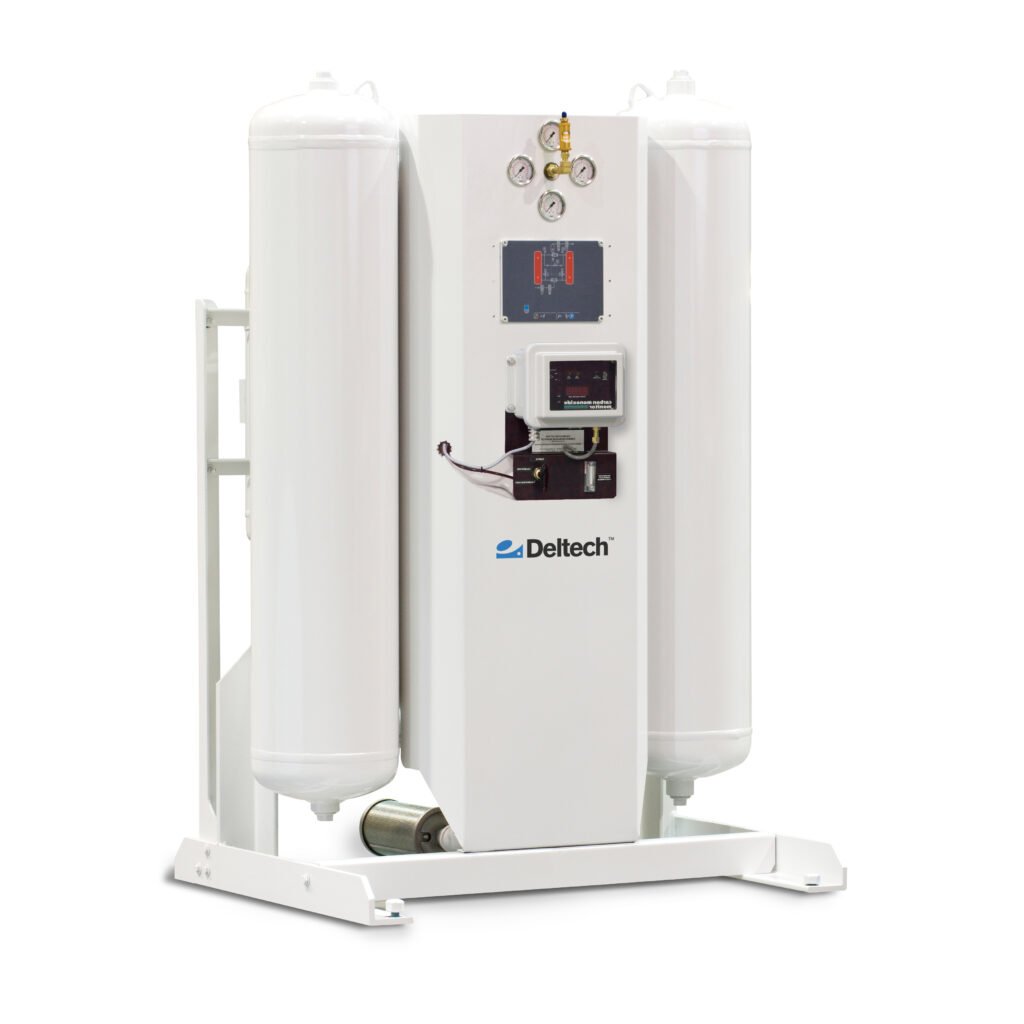

Deltech Del-Monox Series Breathing Air Purifier
OSHA, CSA, CGA, and ANSI compliant contaminant removing system with 6 stage filtration and a 15 to 940 SCFM capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Deltech Del-Monox Series breathing air purifier is designed to remove moisure, solid particles, oil aerosols and mists, carbon monoxide, and hydrocarbon vapors commonly present in compressed air. The resulting air can be safely used by supplied-air breathing devices such as masks, hoods, and helmets. When used as directed, the Del-Monox purifier supplies air that meets OSHA Grade D, CSA, CGA, and ANSI standards for maximum allowable contaminant levels for compressed air breathing.
The purifier features pre-filtration to remove solids and oils, after-filters to collect remaining particles and absorb vapor, CO catalyst converter, and moisture indicator with visual color change. The standard controller is NEMA 4/4X compliant with critical LED indicators, soft on/off switch with two power recovery modes, switching failure alarms, adjustable service indications, tower and valve status LEDs, voltage free common alarm contacts, and an RS-232 communications port.
Six Stage Filtration
- Stage 1 General purpose filter removes solid and liquid
contaminants down to 1.0 micron - Stage 2 High efficiency oil removal filter captures liquid
aerosols and sub-micronic particles down 0.01 micron - Stage 3 Pressure-swing regenerative desiccant dryer removes
water vapor to ensure the effectiveness of the catalyst bed - Stage 4 Dried air travels through a catalytic converter reducing
CO concentrations by converting CO to CO2 - Stage 5 Particulate removal filter collects contaminants 1.0 micron
and larger from the purified air stream - Stage 6 Activated carbon filter removes oil vapor, trace odors
and other gases normally absorbable by activated carbon
Applications
- Petrochemical
- Asbestos abatement
- Paint spray
- Protective coatings
- Confined spaces
Overview and Features
Features
- 15 to 940 SCFM outlet capacity
- 150 PSIG max pressure
- 120°F max temperature
- NEMA 4/4X controller
- OSHA Grade D, CSA, CGA, and ANSI compliant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 SCFM, 25 SCFM, 35 SCFM, 50 SCFM, 75 SCFM, 95 SCFM, 135 SCFM, 205 SCFM, 305 SCFM, 375 SCFM, 490 SCFM, 625 SCFM, 775 SCFM, 940 SCFM |
|---|---|
| Connection | 1" NPT, 1-1/2" NPT, 2" NPT, 3" Flange |
| Controller | Level 1 Controller, Level 2 Controller |
| Options | SSPC-10 Sandblast, Pilot and Instrument Tubing, Hazardous Location (Class I Div I or II group C or D) |
| Mounted Multi-Function Monitor | None, CO, CO with O2, CO with Dew Point, CO with O2 and Dew Point |
