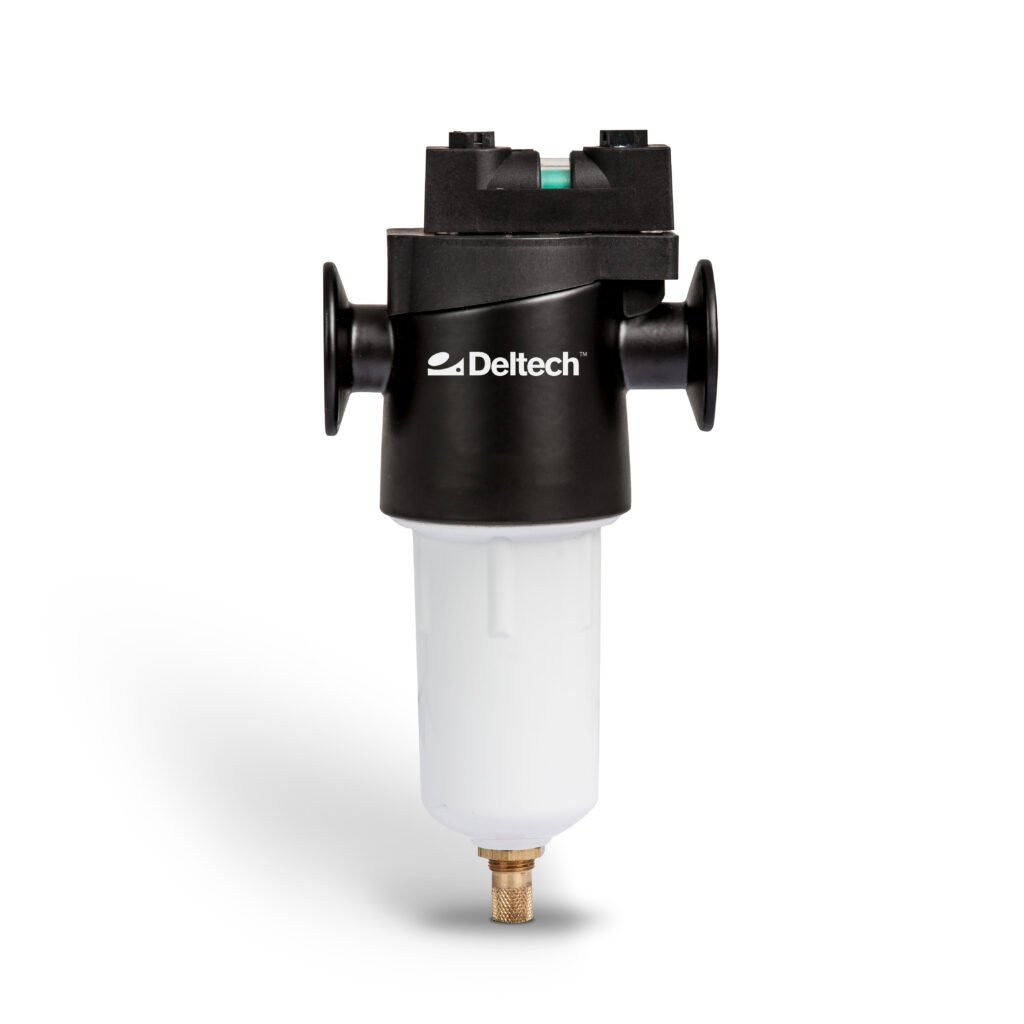

Deltech 300 Series Filter

The Deltech 300 Series filter offers a wide range of filters that exceed customer requirements for ISO Quality Class performance, service life, and optimal energy savings. This makes the 300 Series the ideal solution to remove contamination from compressed air systems.

Filter Element Grades:

• Oil vapor removal: Activated carbon filter removes oil vapor and provides oil free air for food and drug manufacturing, breathing air, and gas processing. Removes solids 0.01 micron and larger and remaining oil content <0.004mg/m3 (as a vapor). Ideal for use downstream of high efficiency oil removal filters.
• Bulk liquid removal: removes bulk liquid (5 mg/m3) and solids (down to 3 micron). Ideal for use downstream of aftercoolers or at point-of-use if no aftercooler/separator used upstream.
• Particulate removal: General purpose filtration to protect pneumatically operated tools, motors and cylinders. Removes solids 1.0 micron and larger and remaining oil content 2.0 mg/m3. Ideal for use upstream of ultra high efficiency oil removal filters, at point-of-use if an aftercooler/separator is installed upstream, downstream of heatless desiccant dryers, or upstream of refrigerated dryers.
• Oil removal: Fine coalescer provides oil free air for industrial applications such as spray painting, injection molding, instrumentation, and control valves. Removes 99.999+% of solids 0.01 micron and larger and remaining oil content <0.01 mg/m3. Ideal for use upstream of desiccant dryers, downstream of refrigerated dryers, or at point-of-use if an aftercooler/separator is installed upstream.
• High efficiency oil removal: Ultra fine coalescer delivers oil free air for critical applications including, conveying, electronics manufacturing and nitrogen replacement. Removes 99.9999+% of solids 0.01 micron and larger and remaining oil content <0.001 mg/m3. Ideal for use upstream of desiccant dryers, upstream of membrane dryers (use a particulate removal as a pre-filter if heavy liquid loads are present), and downstream of refrigerated dryers.
