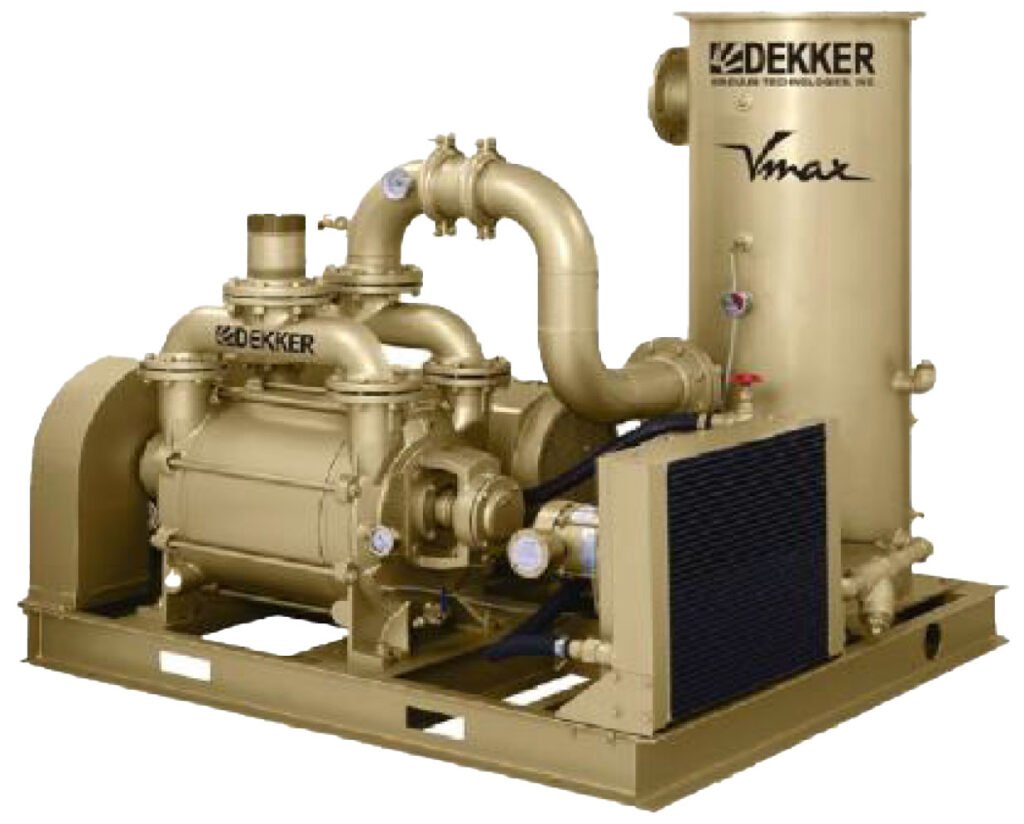

Dekker Vmax Series Liquid Ring Oil-Sealed Vacuum Pump System
Heavy duty vacuum system with Titan Series single-stage liquid ring pump and capacities up to 2400 ACFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Vmax Series Liquid Ring Oil-Sealed Vacuum Pump System offers a performance range of 35 to 2400 ACFM. Titan Series liquid ring vacuum pumps back this motor-mounted system and is available with ductile iron or 316 stainless steel impellers, this system generates up to 29″ HgV of vacuum. The pumps meet the stringent ISO 9001 quality control standards, assuring unparalleled reliability in many industrial applications.
Overview and Features
Features
- Titan Series single-stage liquid ring vacuum pump:
- Cast iron casing and portplate
- Ductile iron or 316 stainless steel impeller
- Viton mechanical shaft seal
- 29″ HgV max vacuum
- 230/460V, 3 phase motors
- Discharge separator-reservoir with level sight gauge
- Air-cooled, heat exchanger package with fan/motor/guard
- Inlet check valve
- Filled with Vmaxol seal fluid
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Simplex, Duplex |
|---|---|
| Pump Model and Impeller Material | Singe-stage monoblock - 316 stainless steel, Singe-stage bare shaft - ductile iron |
| Horsepower | 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP, 6 HP (two 3 HP Titan pumps), 10 HP (two 5 HP Titan pumps), 15 HP (two 7.5 HP Titan pumps), 20 HP (two 10 HP Titan pumps), 30 HP (two 15 HP Titan pumps), 40 HP (two 20 HP Titan pumps), 50 HP (two 25 HP Titan pumps), 80 HP (two 40 HP Titan pumps), 100 HP (two 50 HP Titan pumps), 120 HP (two 60 HP Titan pumps), 150 HP (two 75 HP Titan pumps), 200 HP (two 100 HP Titan pumps) |
| Capacity | 35 ACFM, 60 ACFM, 75 ACFM, 100 ACFM, 150 ACFM, 70 ACFM, 120 ACFM, 200 ACFM, 300 ACFM, 410 ACFM, 550 ACFM, 400 ACFM, 600 ACFM, 820 ACFM, 1100 ACFM, 650 ACFM, 750 ACFM, 1000 ACFM, 1200 ACFM, 1300 ACFM, 1500 ACFM, 2000 ACFM, 2200 ACFM, 2400 ACFM |
| Voltage | 230/3/60, 460/3/60 |
| Connection Size | 1" MNPT inlet, 1" FNPT outlet, 1-1/2" MNPT inlet, 2" FNPT outlet, 2" MNPT inlet, 2" FNPT outlet, 2" MNPT inlet, 3" FNPT outlet, 2.5" MNPT inlet, 3" FNPT outlet, 3" MNPT inlet, 4" FNPT outlet, 4" MNPT inlet, 4" FNPT outlet, 5" MNPT inlet, 6" 150# flange outlet |
