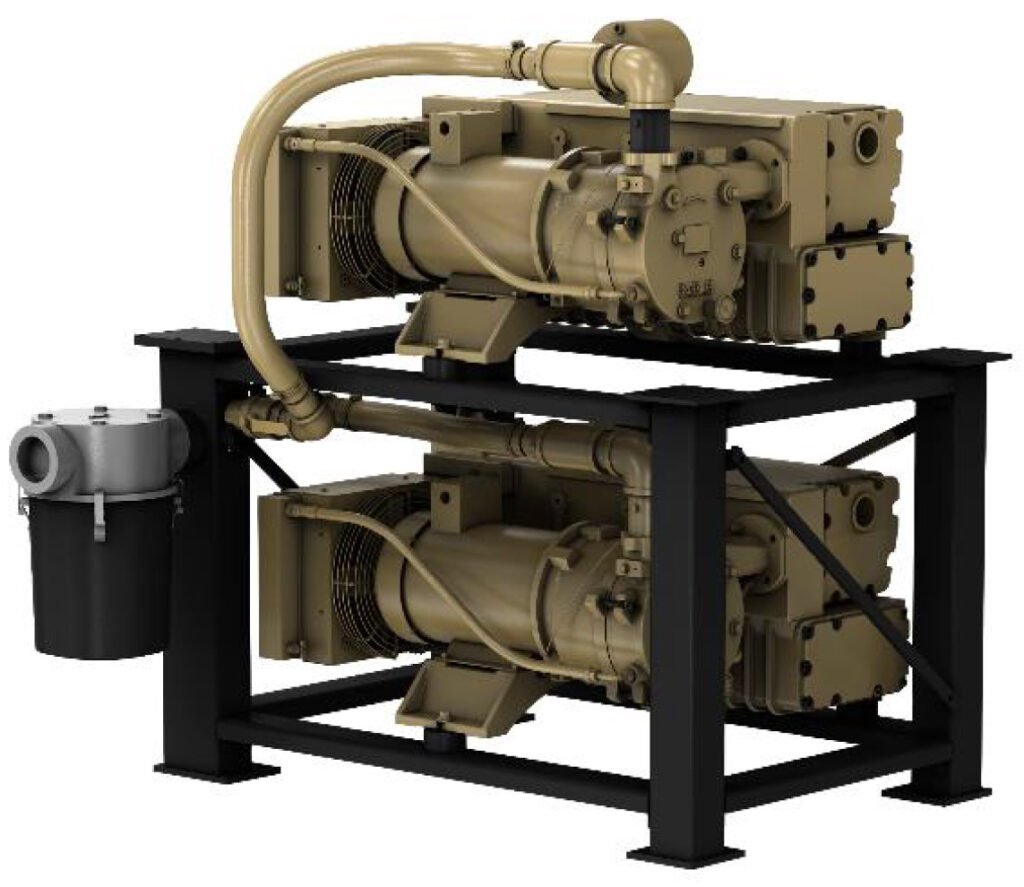

Dekker Vmax Series Compact Liquid Ring Oil-Sealed Vacuum Pump System
Compact and heavy duty system with Titan Series single-stage liquid ring vacuum pump
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Vmax Series Compact Liquid Ring Oil-Sealed Vacuum Pump System offers a performance range of 35 to 465 ACFM. Titan Series liquid ring vacuum pumps back this motor-mounted system and is available with ductile iron or 316 stainless steel impellers, this system generates up to 29″ HgV of vacuum. The pumps meet the stringent ISO 9001 quality control standards, assuring unparalleled reliability in many industrial applications.
The ductile iron impeller models are available in a woodworking application-specific configuration. This system adds an inlet filter and vacuum relief valve for better performance in wood shop environments.
Overview and Features
Features
- Titan Series single-stage liquid ring vacuum pump:
- Cast iron casing and portplate
- Ductile iron or 316 stainless steel impeller
- Viton mechanical shaft seal
- 29″ HgV max vacuum
- 230/460V, 3 phase motors
- Discharge separator-reservoir with level sight gauge
- Back-pressure gauge and temperature gauge
- Stainless steel models also include vacuum gauge
- Air-cooled, heat exchanger package with fan/motor/guard
- Woodworking application system includes inlet filter and vacuum relief valve (Ductile iron only)
- Inlet check valve
- Filled with Vmaxol seal fluid
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Impeller Material | 316 stainless steel, Ductile iron |
|---|---|
| Horsepower | 10 HP, 20 HP (two 10 HP Titan pumps), 30 HP (three 10 HP Titan pumps), 3 HP, 5.5 HP, 7.5 HP, 6 HP (two 3 HP Titan pumps), 11 HP (two 5.5 HP Titan pumps), 15 HP (two 7.5 HP Titan pumps) |
| Capacity | 155 ACFM, 310 ACFM, 465 ACFM, 35 ACFM, 60 ACFM, 75 ACFM, 100 ACFM, 150 ACFM, 70 ACFM, 120 ACFM, 200 ACFM, 300 ACFM |
| Filter and Relief Valve Option | None, Add inlet filter and vacuum relief valve (woodworking application) |
| Connection Size | 2-1/2" MNPT inlet, 2" FNPT outlet, 2-1/2" FNPT inlet, 2" FNPT outlet, 3" FNPT inlet, 2" FNPT outlet, 4" FNPT inlet, 2" FNPT outlet, 1" MNPT inlet, 1" FNPT outlet, 1-1/2" MNPT inlet, 2" FNPT outlet, 2" MNPT inlet, 2" FNPT outlet |
| Voltage | 230/3/60, 460/3/60 |
