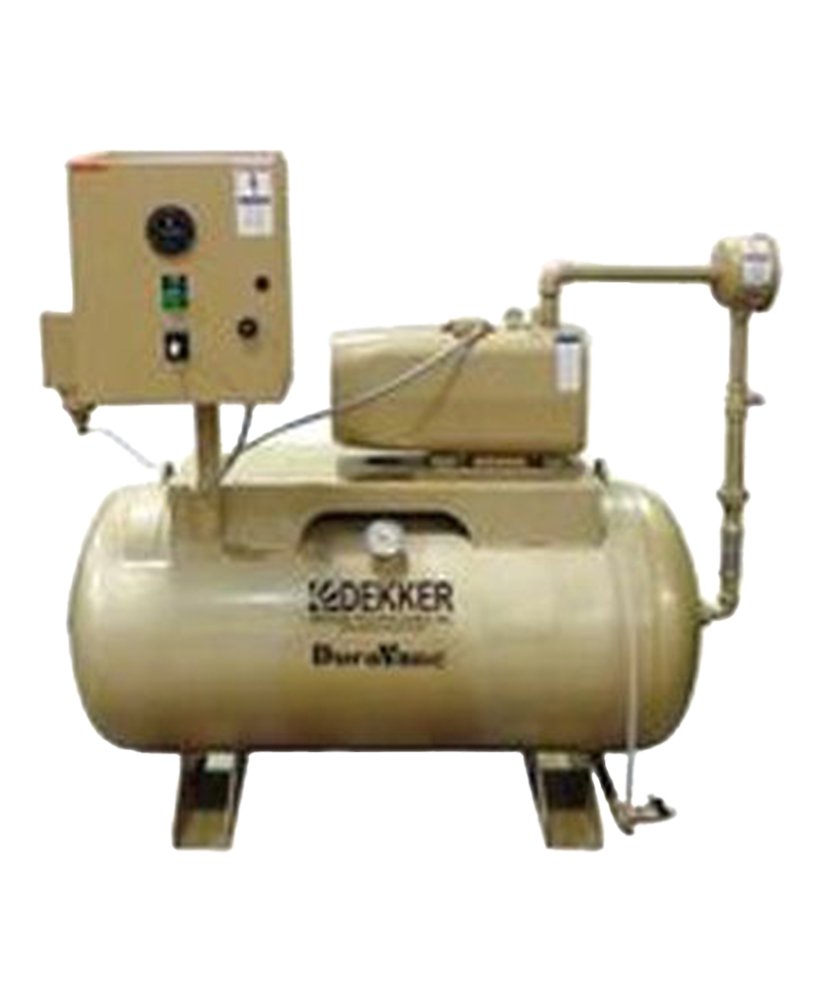

Dekker DuraVane Oil Free Rotary Vane Vacuum System
Compact vacuum pump system with direct drive motor, air cooling, and 10,000 hour vane life
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker DuraVane oil free rotary vane vacuum system is designed with fewer vanes and longer vane life with self-lubricating, long-life graphite composite vane material. The DuraVane features a three phase TEFC electric motor, inlet isolation valve, inlet flex connector, secondary non-return inlet check valve, inlet filter, receiver level sight gauge, vacuum gauge, and drain valve. The system is tank mounted on a horizontal vacuum receiver tank from 30 to 120 gallons, depending on the model selected.
The control panel monitors, measures, and displays performance. Its features include an across-line magnetic vacuum pump starter with three phase overload protection, a PLC with integral hour meter, vacuum on/off capability with adjustable set points, and a vacuum transducer for vacuum level indication and control.
Applications
- Printing
- Woodworking
- Paper converting
- Vacuum chucking and lifting
Overview and Features
Features
- 1.5 to 5.5 HP
- 12 to 71 ACFM capacity
- 75 to 112.5 Torr max vacuum
- Horizontal vacuum receiver tank
- TEFC motor
- 230-460/3/60 V
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 1 HP, 2.5 HP, 4 HP, 5.5 HP |
|---|---|
| Capacity | 12 ACFM, 28 ACFM, 42 ACFM, 56 ACFM, 71 ACFM |
| Tank Size | 30 gallon, 60 gallon, 80 gallon, 120 gallon |
