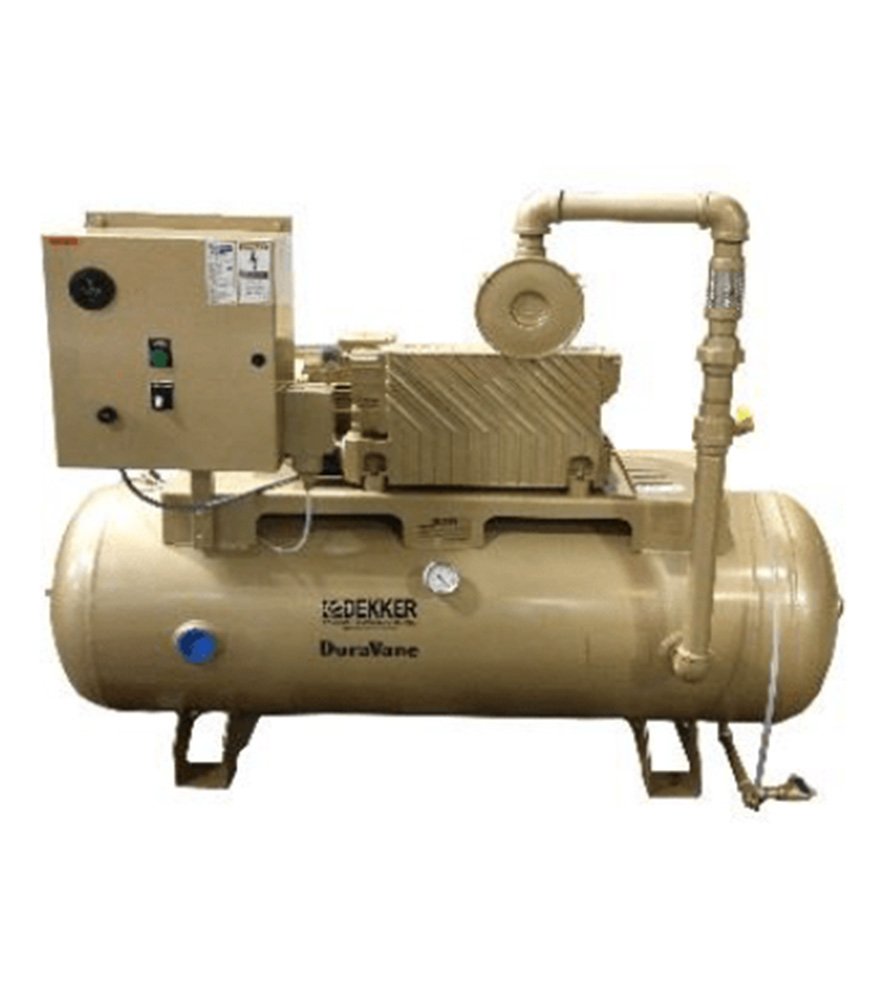

Dekker DuraVane Lubricated Rotary Vane Vacuum System
Air cooled vacuum pump system with direct drive motor, gas ballast, and mist eliminator
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker DuraVane lubricated rotary vane vacuum system includes a lubricated rotary vane vacuum pump, gas ballast, mist eliminator, and control panel. The DuraVane features a three-phase TEFC electric motor, inlet isolation valve, inlet flex connector, inlet filter, receiver level sight gauge, vacuum gauge, and drain valve. The system is mounted on a horizontal vacuum receiver tank from 60 to 200 gallons, depending on the model selected.
The control panel monitors, measures, and displays performance. The control panel features include an across-line magnetic vacuum pump starter with three-phase overload protection, a PLC with an integral hour meter, vacuum on/off capability with adjustable set points, and a vacuum transducer for vacuum level indication and control.
Applications
- Vacuum packing, lifting, and chucking
- Paper converting
- Biotech industry
- Printing industry
- Electronics industry
- Laboratories
- Hospitals
Overview and Features
Features
- Horsepower and Capacity:
- Simplex: 0.88 to 8.6 HP, 7.7 to 200 ACFM
- Duplex: 1.76 to 17.2 HP, 15.4 to 400 ACFM
- 0.08 to 1.1 Torr max vacuum
- Inlet isolation valve
- Inlet flex connector
- Horizontal vacuum receiver tank
- 60, 80, 120, and 200 gallon
- TEFC motor
- 230/460/3/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Simplex, Duplex |
|---|---|
| Horsepower | 0.88 HP, 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 8.6 HP, 1.76 HP (two 0.88 HP pumps), 3 HP (two 1.5 HP pumps), 4 HP (two 2 HP pumps), 6 (two 3 HP pumps), 10 HP (two 5 HP pumps), 15 (two 7.5 HP pumps), 17.2 HP (two 8.6 HP pumps) |
| Capacity | 7.7 ACFM, 11.2 ACFM, 18.3 ACFM, 31.2 ACFM, 41.8 ACFM, 68.9 ACFM, 107 ACFM, 141 ACFM, 200 ACFM, 15.4 ACFM, 22.4 ACFM, 36.6 ACFM, 62.4 ACFM, 83.6 ACFM, 137.8 ACFM, 214 ACFM, 282 ACFM, 400 ACFM |
| Tank Size | 60 gallon, 80 gallon, 120 gallon, 200 gallon |
