Dekker AquaSeal Cast Iron Liquid Ring Water-Sealed Vacuum Pump System
29" HgV max vacuum pump with cast iron casing and portplate, 316SS or ductile iron impeller
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker AquaSeal Cast Iron Liquid Ring Water-Sealed Vacuum Pump System is available in capacities from 15 to 1200 ACFM. Backed by Dekker’s own Titan vacuum pumps, these systems can create a maximum vacuum 29″ HgV. AquaSeal systems can use various seal fluids depending on the application.
System configurations offered:

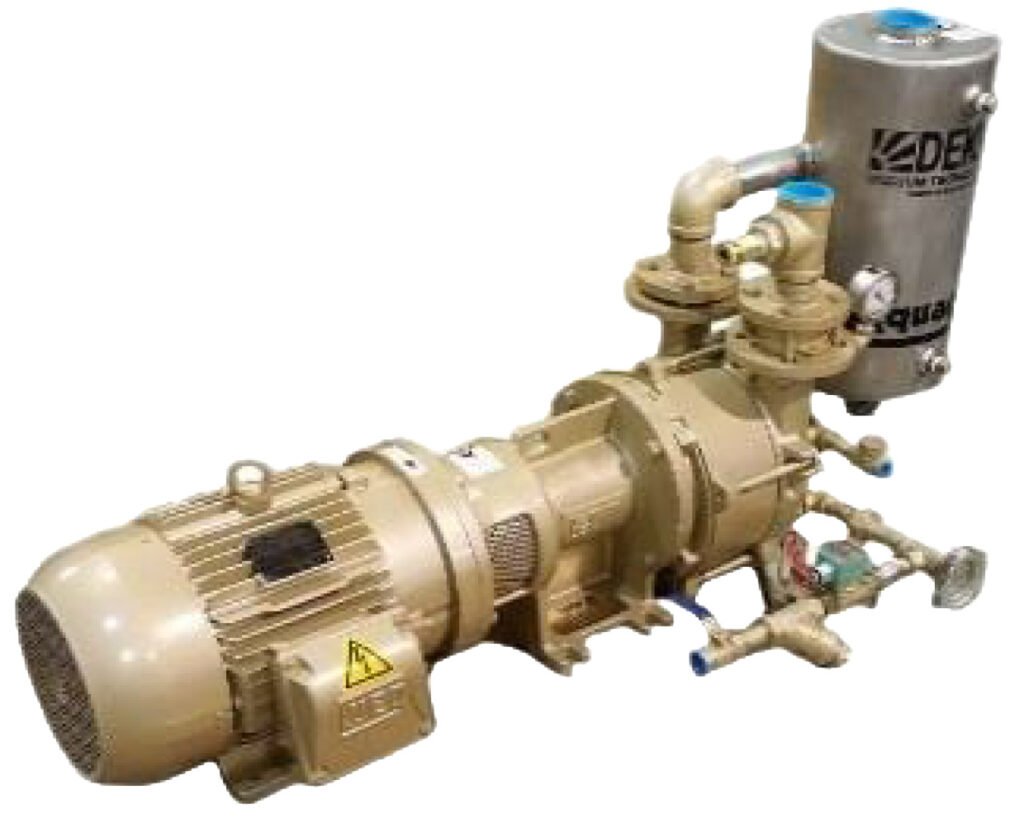

- No Recovery
- Water fed to the vacuum pump is discharged down the drain or used for another purpose.
- Partial Recovery
- About 50% of the seal water is re-circulated while fresh seal water is added for make-up. Consideration must be given to heat build-up.
- Full Recovery
- Close to 100% of the seal water is recovered and reused. Because of heat build-up, a heat exchanger might need to be used for this configuration.
Overview and Features
Features
- Titan single-stage motor-mounted or monoblock liquid ring vacuum pump
- Cast iron casing and portplate
- 316SS or ductile iron impeller depending on model selected
- Viton mechanical shaft seal
- 230/460V, 3phase, 60Hz motor
- Vacuum gauge (no/partial recovery models)
- Compound, temperature, and vacuum gauge (full recovery models)
- Seal fluid make-up solenoid valve 110VAC
- Inlet check valve
- Pump drain valve (only on 7.5 HP and up)
- Baseplate or skid frame depending on model selected
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | No recovery, Partial recovery, Full recovery |
|---|---|
| Pump Type | Single-stage, Two-stage |
| Horsepower | 1.5 HP, 2 HP, 3 HP, 5 HP, 5.5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP |
| Capacity | 15 ACFM, 20 ACFM, 35 ACFM, 40 ACFM, 60 ACFM, 75 ACFM, 100 ACFM, 140 ACFM, 150 ACFM, 200 ACFM, 250 ACFM, 300 ACFM, 400 ACFM, 410 ACFM, 500 ACFM, 550 ACFM, 650 ACFM, 750 ACFM, 1000 ACFM, 1100 ACFM, 1200 ACFM |
| Pump Model and Impeller Material | Liquid Ring - 316 stainless steel, Monoblock - 316 stainless steel, Bare shaft liquid ring - Ductile Iron, Liquid Ring - Bronze |
| Voltage | 230/460/3/60 |
| Connection Size / Type | 1" FNPT inlet/outlet, 1-1/2" FNPT inlet, 2" FNPT outlet, 2" FNPT inlet, 2-1/2" FNPT outlet, 2-1/2" FNPT inlet, 2-1/2" FNPT outlet, 3" FNPT inlet, 4" FNPT outlet, 4" FNPT inlet, 4" FNPT outlet, 5" FNPT inlet, 6" 150# flange outlet, 1-1/4" FNPT inlet, 1-1/2" FNPT outlet, 3" FNPT inlet, 3" FNPT outlet |
