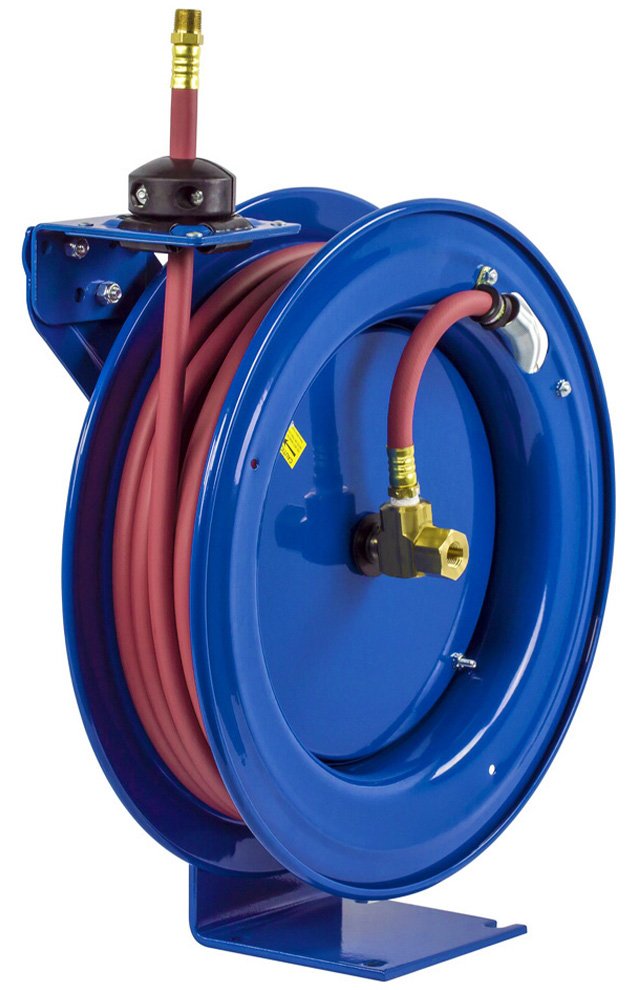

Coxreels P Series Spring Driven Hose Reel
Compact single hose reel with multi-position guide arm and cartridge-style spring motor
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels P Series Spring Driven Hose Reel is equipped with a single pedestal design that saves space and promotes workplace organization. The guide arm built into it can be adjusted to suit wall, floor, vehicle, and overhead positions. The sturdy single pedestal design includes a solid one-piece steel base and support post, with no welds for maximum stability. The enclosed factory-tuned and matched cartridge-style spring motor ensures reliable retraction, while the multi-position lock ratchet mechanism securely locks the hose at the desired length.
Overview and Features
Features
- Steel construction
- 300 to 5000 PSI max pressure options available
- Available as reel-only or reel with included hose
- Hi-Vis hose option available (300 PSI only)
- Machined solid brass 90° full-flow NPT swivel
- Multi-position guide arm
- Powder coat finish
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Pressure | 300 PSI, 2500 PSI, 3000 PSI, 4000 PSI, 5000 PSI |
|---|---|
| Hose | No hose, reel only, Hose included, Hi-Vis yellow hose included |
| Supported Hose Diameter | 1/4" ID, 1/2" OD, 3/8" ID, 5/8" OD, 1/2" ID, 3/4" OD, 1/4" ID, 9/16" OD, 3/8" ID, 11/16" OD, 1/2" ID, 13/16" OD |
| Supported Hose Length | 10', 15', 25', 30', 35', 40', 50', 20' |
