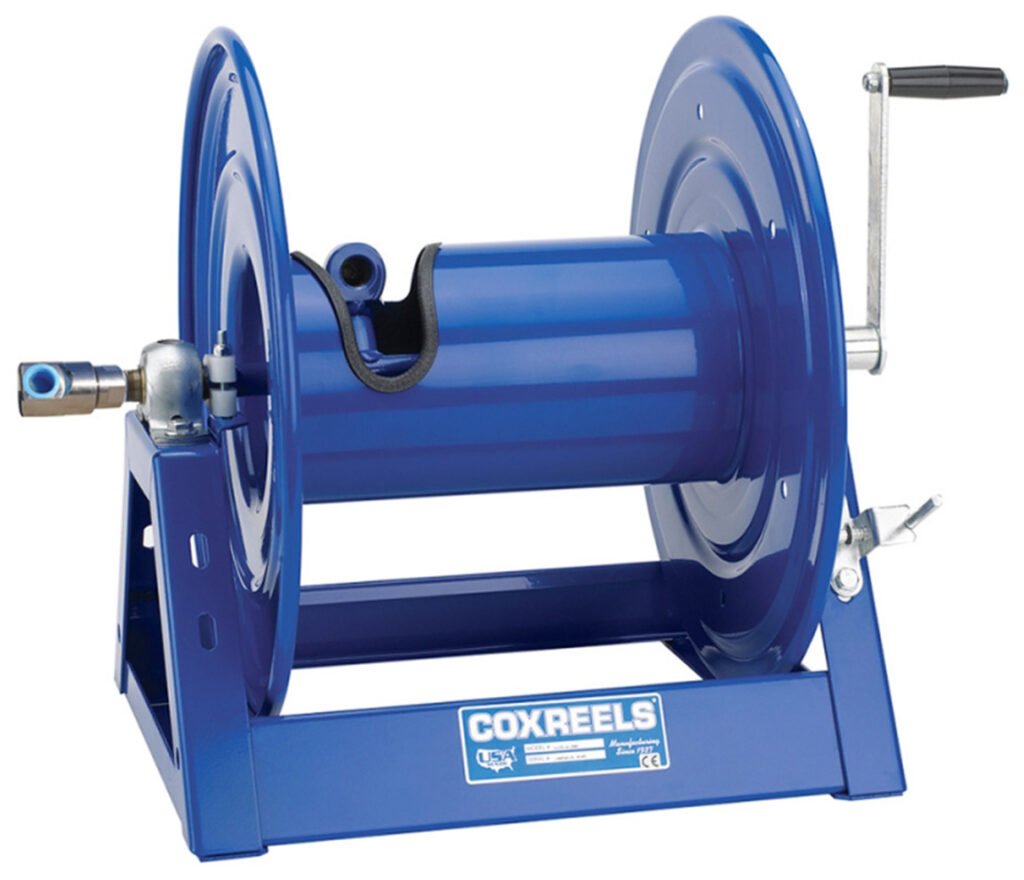

Coxreels HP1125 Series High Pressure Hand Crank Hose Reel
Supports hose lengths up to 500' at 5000 PSI operating pressures, available with solid steel direct hand crank or a bevel gear hand crank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels HP1125 Series High Pressure Hand Crank Hose Reel has a design that is favored by the industry. It comes with a strong one-piece “A” frame base that is all-welded. The low-profile outlet riser and open drum slot design provide a non-crimping, flat smooth hose wrap.
Overview and Features
Features
- Up to 5000 PSI working pressure
- CNC welded 12 gauge steel a-frame
- Two models available:
- Solid steel direct hand crank
- Bevel gear hand crank with removable handle
- Electroless nickel-plated 90° full-flow NPT swivel
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Solid steel direct hand crank, Bevel gear hand crank with removable handle |
|---|---|
| Max Pressure | 5000 PSI |
| Supported Hose Diameter | 1/2" ID, 7/8" OD, 3/4" ID, 1-1/4" OD |
| Supported Hose Length | 50', 100', 175', 200', 250', 325', 450', 500' |
