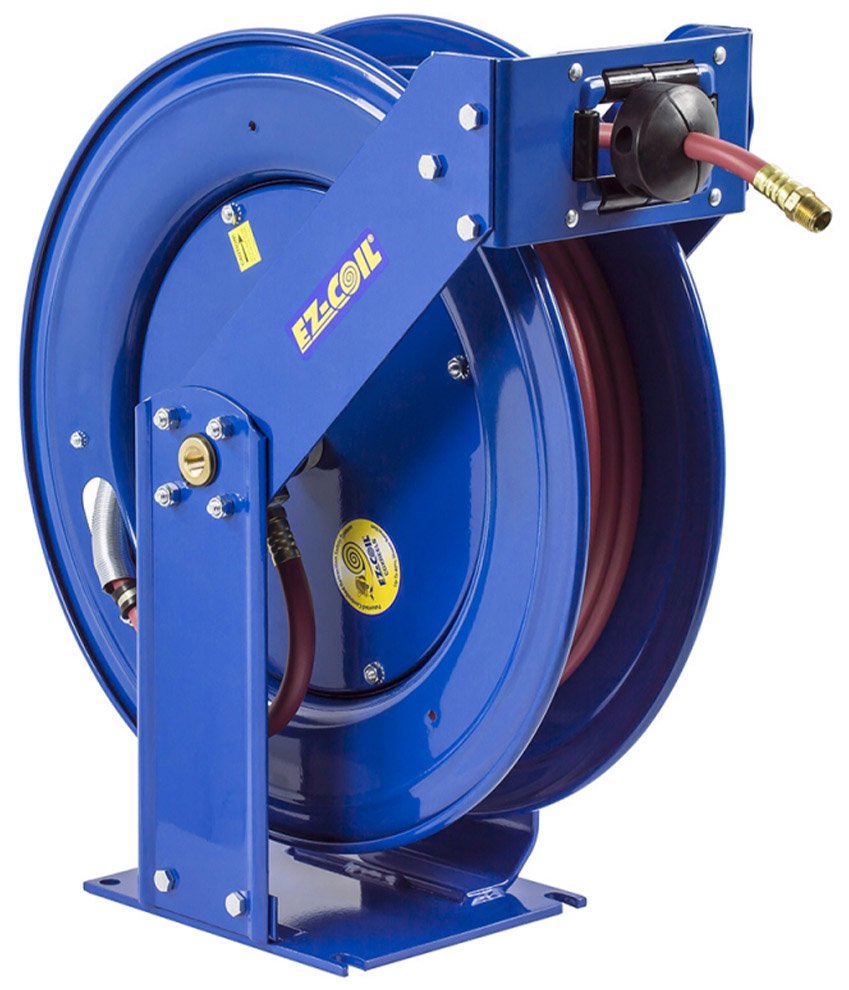

Coxreels EZ-T Series Truck Mount Spring Driven Hose Reel
Designed for truck mounting, includes EZ Coil system, Super Hub triple axle support system, and two pedestal-style guide arm
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels EZ-T Series Truck Mount Spring Driven Hose Reel has a large chassis with two pedestal-style arm, and the Super Hub provides triple axle support, which reduces vibration and strengthens the reel’s structure. This design makes the EZ-TSeries perfect for off-road applications that require reliability in the toughest and most challenging environments.
The EZ Coil is a safety system that retracts up to 80% slower than conventional reels. The lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
Overview and Features
Features
- Steel construction
- 300 to 5000 PSI max pressure options available
- EZ-Coil equipped – retracts up to 80% slower than conventional reels
- Available as reel-only or reel with included hose
- Machined solid brass 90° full-flow NPT swivel
- Zinc-plated steel on high pressure models
- Multi-position guide arm
- Powder coat finish
- Permanently lubricated bearings
- Multi-position lock ratchet system
- 2-year limited manufacturer warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Pressure | 300 PSI, 1500 PSI, 2500 PSI, 3000 PSI, 4000 PSI, 5000 PSI |
|---|---|
| Hose | No hose, reel only, Hose included |
| Supported Hose Diameter | 3/8" ID, 5/8" OD, 3/8" ID, 11/16" OD, 1/4" ID, 9/16" OD, 1/2" ID, 3/4" OD, 1/2" ID, 13/16" OD, 3/4" ID, 1-1/16" OD |
| Supported Hose Length | 50', 75', 100', 35' |
