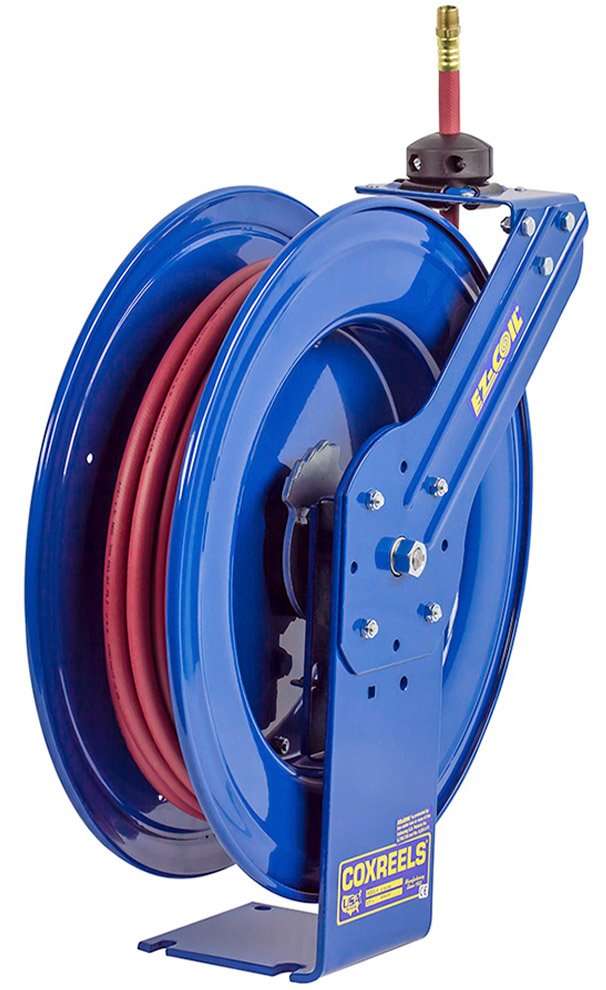

Coxreels EZ-SH Series Spring Driven Hose Reel
Compact hose reel with EZ Coil system, multi-position guide arm, and Super Hub dual axle support system
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels EZ-SH Series Spring Driven Hose Reel has a bigger chassis and frame to handle longer lengths and wider diameters of hose. It also features the Super Hub dual axle support system that increases stability during operation, reduces vibration and enhances the overall structural integrity of the reel.
The EZ Coil is a safety system that retracts up to 80% slower than conventional reels. The lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
Overview and Features
Features
- Steel construction
- 300 to 5000 PSI max pressure options available
- EZ-Coil equipped – retracts up to 80% slower than conventional reels
- Available as reel-only or reel with included hose
- Machined solid brass 90° full-flow NPT swivel
- Zinc-plated steel on high pressure models
- Multi-position guide arm
- Powder coat finish
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Pressure | 300 PSI, 2500 PSI, 3000 PSI, 4000 PSI, 5000 PSI |
|---|---|
| Hose | No hose, reel only, Hose included |
| Supported Hose Diameter | 1/4" ID, 9/16" OD, 3/8" ID, 5/8" OD, 3/8" ID, 11/16" OD, 1/2" ID, 3/4" OD, 1/2" ID, 13/16" OD, 3/4" ID, 11/16" OD |
| Supported Hose Length | 50', 75', 100', 25' |
