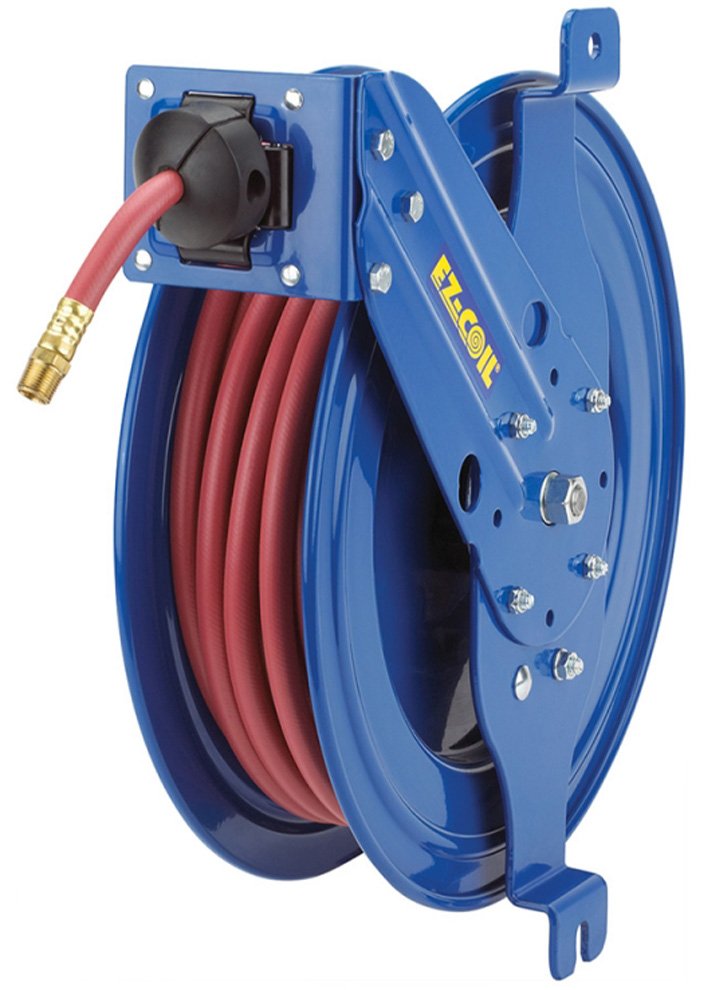

Coxreels EZ-SG Series Side Mount Spring Driven Hose Reel
Spring driven hose reel with EZ Coil designed for flat surface mounting, includes multi-position guide arm and lock ratchet mechanism
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The EZ-SG Series Side Mount Spring Driven Hose Reel from Coxreels is similar to the EZ-S Series but comes with a multi-position guide arm for better control of the hose. It is suitable for use in tight spaces, and its versatile design is easy to install and detach on any vertical, flat surface using a simple two-bolt mounting pattern. Common applications include use in service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools, and more. The guide arm and roller assembly can be moved to one of six different positions using a standard 1/2″ wrench.
The EZ Coil is a safety system that retracts up to 80% slower than conventional reels. The lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
Overview and Features
Features
- Steel construction
- 300 to 5000 PSI max pressure options available
- EZ-Coil equipped – retracts up to 80% slower than conventional reels
- Available as reel-only or reel with included hose
- Machined solid brass 90° full-flow NPT swivel
- Zinc-plated steel on high pressure models
- Multi-position guide arm
- Powder coat finish
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Pressure | 300 PSI, 2500 PSI, 3000 PSI, 4000 PSI, 5000 PSI |
|---|---|
| Hose | No hose, reel only, Hose included |
| Supported Hose Diameter | 1/4" ID, 1/2" OD, 3/8" ID, 5/8" OD, 1/2" ID, 3/4" OD, 1/4" ID, 9/16" OD, 3/8" ID, 11/16" OD, 1/2" ID, 13/16" OD |
| Supported Hose Length | 25', 35', 50', 30' |
