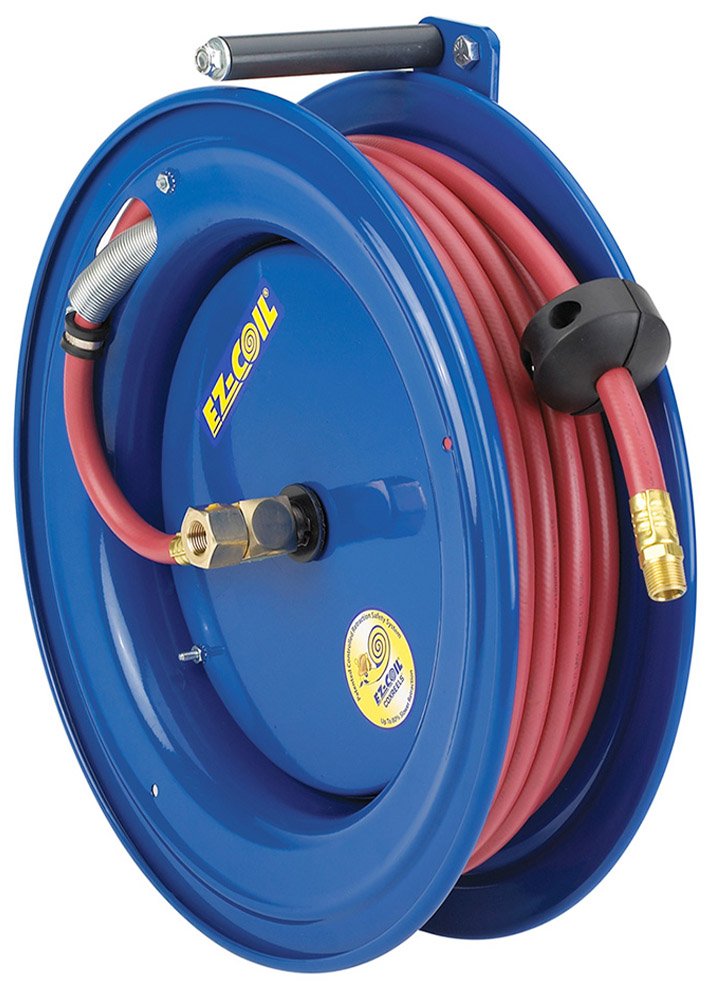

Coxreels EZ-S Series Side Mount Spring Driven Hose Reel
Spring driven hose reel with EZ-Coil retraction system designed for cabinet mounting
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels EZ-S Series Side Mount Spring Driven Hose Reel is a compact and versatile device that offers unique mounting and operational features. It is effortless to install and detach, making it ideal for use in multiple workstation applications. The hose reel allows the user to operate it in any direction, thanks to its 360° hose direction feature. It is commonly used in service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles, or any flat vertical surface.
The EZ Coil is a safety system that retracts up to 80% slower than conventional reels. The lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
Overview and Features
Features
- Steel construction
- 300 PSI max pressure
- EZ-Coil equipped – retracts up to 80% slower than conventional reels
- Left-side or right-side mounting options
- Available as reel-only or reel with included hose
- Machined solid brass 90° full-flow NPT swivel
- Powder coat finish
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Mounting | Left side mounting, Right side mounting |
|---|---|
| Max Pressure | 300 PSI |
| Hose | Hose included, No hose, reel only |
| Supported Hose Diameter | 1/4" ID, 1/2" OD, 3/8" ID, 5/8" OD, 3/8" ID, 3/4" OD, 1/2" ID, 3/4" OD |
| Supported Hose Length | 25', 35', 50' |
