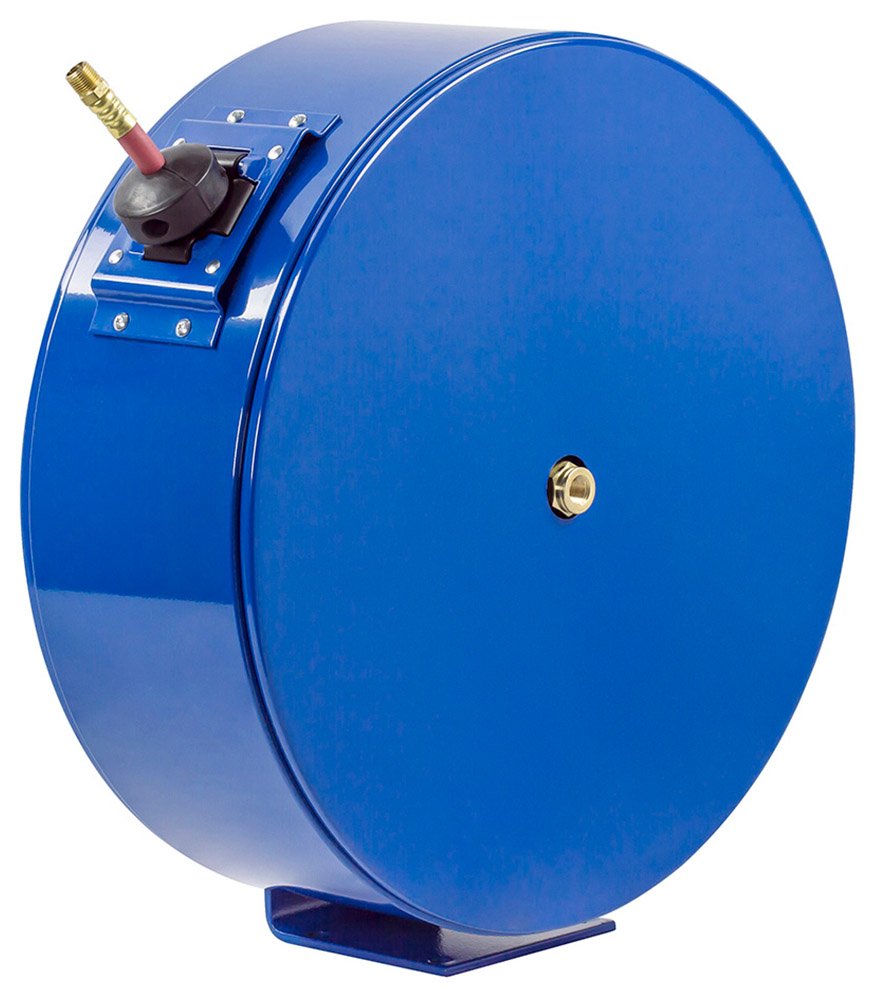

Coxreels EZ-EN Series Enclosed Spring Driven Hose Reel
Spring driven hose reel with EZ-Coil, protected by a powder coated steel casing that shields out the elements
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels EZ-EN Series Enclosed Spring Driven Hose Reel is designed to last longer and stay protected from the elements. Its powder-coated steel casing shields the reel, hose, and internal components. The three-piece casing is easy to install and maintain with simple assembly and disassembly.
The EZ Coil is a safety system that retracts up to 80% slower than conventional reels. The lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
Overview and Features
Features
- Steel construction
- EZ-Coil equipped – retracts up to 80% slower than conventional reels
- 300 to 5000 max pressure ratings available
- Available as reel-only or reel with included hose
- Machined brass 90° full-flow NPT swivel
- Zinc-plated steel on high pressure models
- Powder coat finish
- Locking ratchet system
- 2-year limited manufacturer warranty
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Pressure | 300 PSI, 2500 PSI, 3000 PSI, 4000 PSI, 5000 PSI |
|---|---|
| Hose | No hose, reel only, Hose included |
| Supported Hose Diameter | 1/4" ID, 9/16" OD, 3/8" ID, 5/8" OD, 1/2" ID, 3/4" OD, 3/8" ID, 11/16" OD, 1/2" ID, 13/16" OD |
| Supported Hose Length | 25', 50' |
