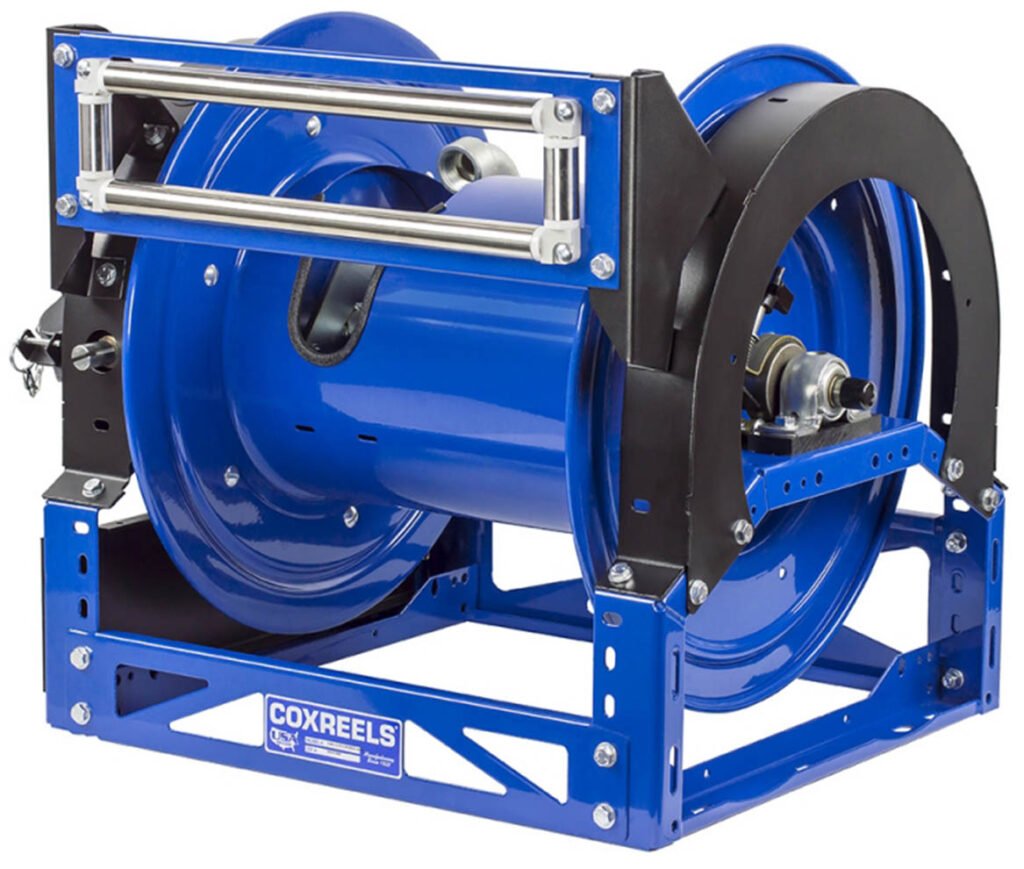

Coxreels 1600 Series Hand Crank Hose Reel

Product overview

Built around your operating requirements.

Description

The Coxreels 1600 Series Hand Crank Hose Reel features a sturdy platform and multiple component configurations, making it suitable for a wide variety of applications. The 1600 series offers various base sizes, which can accommodate different hose capacities. The hybrid frame comes with unique accessories and upgrades that can enhance performance and usability, making it adaptable to different applications.

Overview and Features

Features

1500 or 3000 PSI working pressure options available
CNC welded 12 gauge steel hybrid frame
Two crank models available:
- Solid steel direct hand crank
- Bevel gear hand crank with removable handle
In-line zinc-plated steel straight, full-flow NPT swivel
Permanently lubricated bearings
Adjustable tension brake
2-year limited manufacturer warranty
CPC powder coat finish
Hose not included

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Model	Solid steel direct hand crank, Bevel gear hand crank with removable handle
Max Pressure	1500 PSI, 3000 PSI
Supported Hose Diameter	1" ID, 1-1/2" ID
Supported Hose Length	20', 35', 50', 65', 70', 75', 80', 85', 95', 100', 120', 125', 130', 140', 150', 165', 180', 200', 225', 250', 275', 300', 350', 400', 450', 535', 625'
Base Size	15" x 20.25", 15" x 23.25", 15" x 26.25", 16.5" x 23.25", 16.5" x 26.25", 18.5" x 20.25", 18.5" x 23.25", 18.5" x 26.25", 20.5" x 23.25", 20.5" x 26.25", 22.5" x 20.25", 22.5" x 23.25", 22.5" x 26.25", 27" x 20.25", 27" x 23.25", 27" x 26.25", 29" x 20.25", 29" x 23.25", 29" x 26.25", 31" x 20.25", 31" x 23.25", 31" x 26.25", 35" x 20.25", 35" x 23.25", 40" x 20.25", 40" x 23.25", 40" x 26.25"

Model

Solid steel direct hand crank, Bevel gear hand crank with removable handle

Max Pressure

1500 PSI, 3000 PSI

Supported Hose Diameter

1" ID, 1-1/2" ID

Supported Hose Length

20', 35', 50', 65', 70', 75', 80', 85', 95', 100', 120', 125', 130', 140', 150', 165', 180', 200', 225', 250', 275', 300', 350', 400', 450', 535', 625'

Base Size

15" x 20.25", 15" x 23.25", 15" x 26.25", 16.5" x 23.25", 16.5" x 26.25", 18.5" x 20.25", 18.5" x 23.25", 18.5" x 26.25", 20.5" x 23.25", 20.5" x 26.25", 22.5" x 20.25", 22.5" x 23.25", 22.5" x 26.25", 27" x 20.25", 27" x 23.25", 27" x 26.25", 29" x 20.25", 29" x 23.25", 29" x 26.25", 31" x 20.25", 31" x 23.25", 31" x 26.25", 35" x 20.25", 35" x 23.25", 40" x 20.25", 40" x 23.25", 40" x 26.25"
