Cox Reels

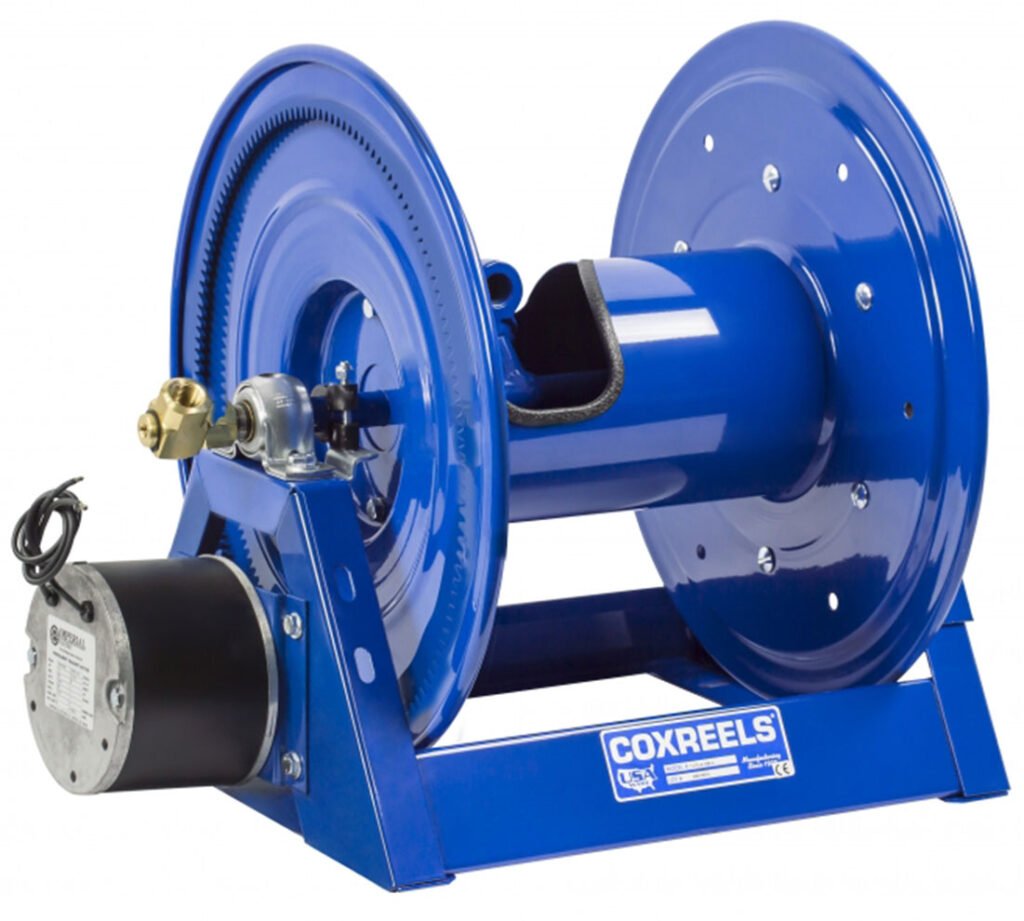

Coxreels 1275 Series Motorized Hose Reel
Dual inlet/outlet motorized hose reel for large capacity applications, 7 motor options available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels 1275 Series Motorized Hose Reel is ideal for applications that require a large capacity. This series comes with dual plumbing that includes two swivel inlets and two low-profile outlets, creating a flat and smooth hose wrap that won’t crimp. The open drum slot also complements this design. The “A” frame design, which is all-welded and in one piece, is preferred by the industry because it adds strength and rigidity. Additionally, the positive gear drive rewind ensures consistent and trouble-free performance.
Overview and Features
Features
- 3000 PSI working pressure
- CNC welded 12 gauge steel a-frame base
- Motor options:
- 12 VDC motor, non-explosion proof
- 115 VAC motor, explosion proof
- 24 VDC motor, explosion proof
- 12 VDC motor, explosion proof
- 24 VDC motor, non-explosion proof
- 230 VAC motor, explosion proof
- Hydraulic rewind
- Two machined solid brass 90° full-flow NPT swivels
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | 12 VDC motor, non-explosion proof, 115 VAC motor, explosion proof, 24 VDC motor, explosion proof, 12 VDC motor, explosion proof, 24 VDC motor, non-explosion proof, 230 VAC motor, explosion proof, Hydraulic rewind |
|---|---|
| Max Pressure | 3000 PSI |
| Supported Hose Diameter | 1/2" ID, 7/8" OD, 1" ID, 1-7/16" OD |
| Supported Hose Length | 50', 75', 100', 150', 200' |
