Coxreels 1195 Series Hand Crank Hose Reel
Designed for large-diameter hoses, bevel gear hand crank with removable handle, 1000 or 1500 PSI pressure options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

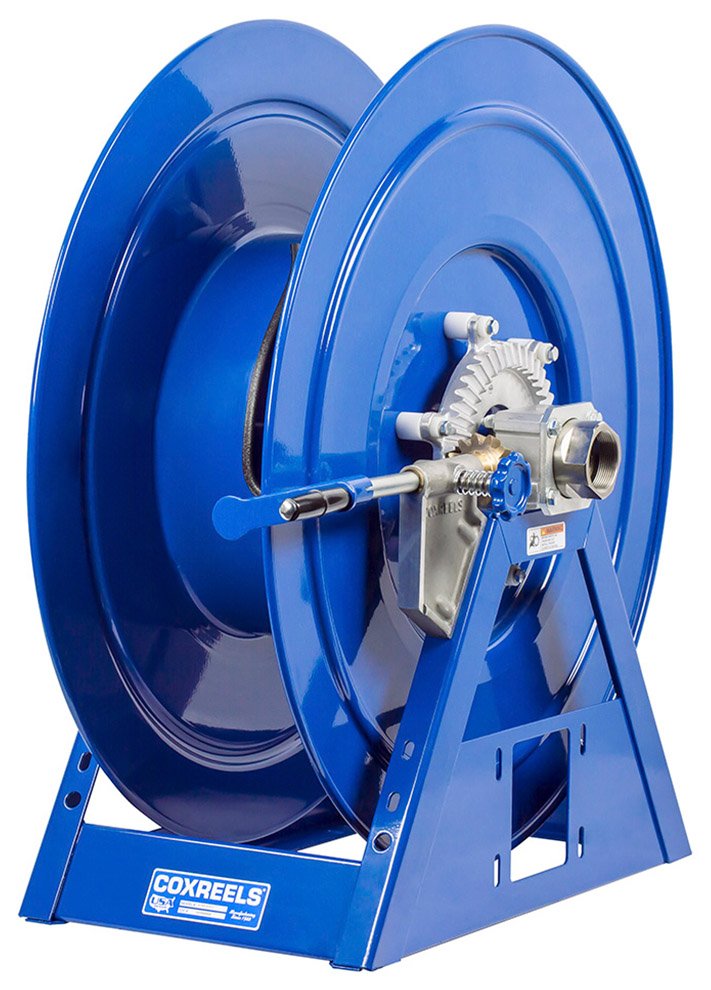

The Coxreels 1195 Series Hand Crank Hose Reel is made to handle large-diameter hoses that can deliver increased volume. Its low-profile outlet riser and open drum design ensure that the hose does not crimp and wrap smoothly. The “A” frame base is all-welded and sturdy, providing ample strength to handle the extra weight without affecting performance, especially for mobile applications. The 1195 Series also comes in a high-pressure model (-BUXX suffix) with a 1500 PSI capacity and an electroless nickel-plated steel 90° full-flow NPT swivel inlet.
Overview and Features
Features
- 1000 or 1500 PSI working pressure options available
- CNC welded 12 gauge steel a-frame base
- Bevel gear hand crank with removable handle
- Swivel:
- 1000 PSI: Electroless nickel-plated steel straight, full-flow NPT swivel
- 1500 PSI: Electroless nickel-plated steel 90° full-flow NPT swivel
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Pressure | 1000 PSI, 1500 PSI |
|---|---|
| Supported Hose Diameter | 2" ID, 2-9/16" OD |
| Supported Hose Length | 50', 60', 75', 90', 115', 125' |
