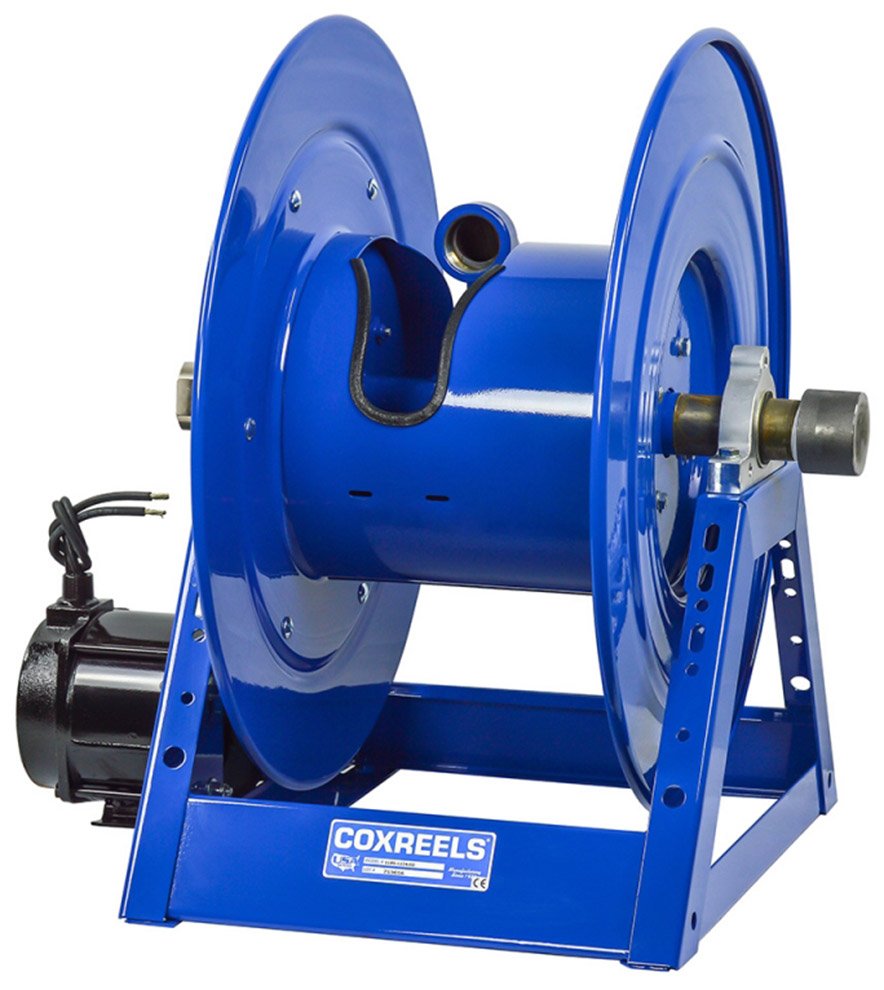

Coxreels 1185 Series Motorized Hose Reel
9 motor options, 1500 or 3000 PSI operating pressure, supports 1-1/2" ID hose, 50' to 250' hose capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels 1185 Series Motorized Hose Reel is ideal for delivering large volumes of air through long lengths of hose. Its open drum design and low profile outlet riser prevent crimping and ensure a smooth hose wrap. The robust “A” frame base can handle the weight without any performance issues, even in demanding mobile applications.
Overview and Features
Features
- 1500 or 3000 PSI working pressure
- CNC welded 12 gauge steel a-frame
- 9 motor options:
- Aluminum 4-vane motor
- Cast iron 6-vane air motor
- 12 VDC motor, 1/3 HP
- 115 VAC motor, 1/2 HP
- 24 VDC motor, 1/2 HP
- 12 VDC motor, 1/2 HP
- 24 VDC motor, 1/3 HP
- 230 VAC motor, 1/2 HP
- Hydraulic rewind
- Swivels:
- In-line aluminum straight, full-flow NPT swivel (1500 PSI)
- Electroless nickel-plated steel 90° full-flow NPT swivel (3000 PSI)
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Aluminum 4-vane air motor, Cast iron 6-vane air motor, 12 VDC motor, 1/3 HP, 115 VAC motor, 1/2 HP, 24 VDC motor, 1/2 HP, 12 VDC motor, 1/2 HP, 24 VDC motor, 1/3 HP, 230 VAC motor, 1/2 HP, Hydraulic rewind |
|---|---|
| Swivel | In-line aluminum straight, full-flow NPT swivel, Electroless nickel-plated steel 90° full-flow NPT swivel |
| Max Pressure | 1500 PSI, 3000 PSI |
| Supported Hose Diameter | 1-1/2" ID, 2-1/16" OD |
| Supported Hose Length | 50', 70', 75', 100', 125', 150', 175', 250' |
