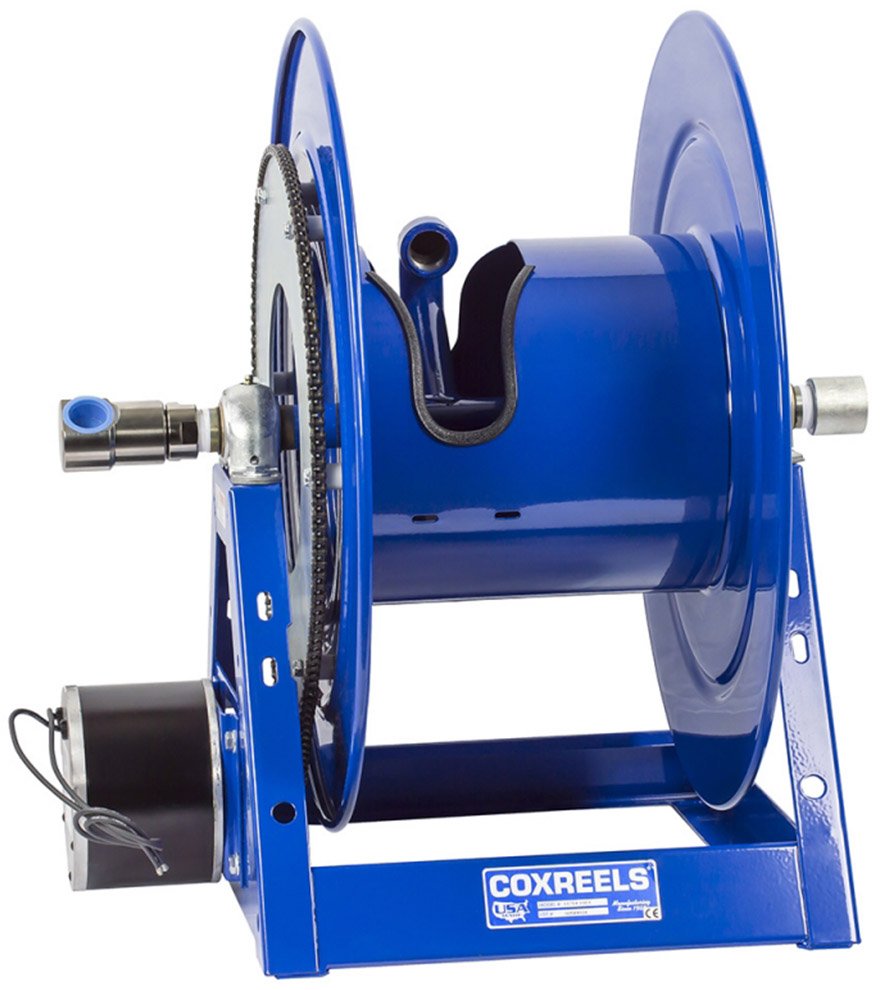

Coxreels 1175 Series Motorized Hose Reel
9 motor options, 3000 PSI operating pressure, supports 1" ID hose, 50' to 200' hose capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels 1175 Series Motorized Hose Reel is designed to accommodate larger hose capacities and diameters with its larger chassis. Its sturdy one-piece all-welded “A” frame base and low profile outlet riser ensure smooth and even hose wraps around the drum with its open drum slot design.
Overview and Features
Features
- Up to 3000 PSI working pressure
- CNC welded 12 gauge steel a-frame
- 9 motor options:
- Aluminum 4-vane motor
- Cast iron 6-vane air motor
- 12 VDC motor, 1/3 HP
- 115 VAC motor, 1/2 HP
- 24 VDC motor, 1/2 HP
- 12 VDC motor, 1/2 HP
- 24 VDC motor, 1/3 HP
- 230 VAC motor, 1/2 HP
- Hydraulic rewind
- Nickel-plated steel 90° full-flow NPT swivel
- Pillow block bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Aluminum 4-vane air motor, Cast iron 6-vane air motor, 12 VDC motor, 1/3 HP, 115 VAC motor, 1/2 HP, 24 VDC motor, 1/2 HP, 12 VDC motor, 1/2 HP, 24 VDC motor, 1/3 HP, 230 VAC motor, 1/2 HP, Hydraulic rewind |
|---|---|
| Max Pressure | 3000 PSI |
| Supported Hose Diameter | 1" ID, 1-7/16" OD |
| Supported Hose Length | 50', 100', 125', 135', 150', 200' |
